Vinyl wrap signage is the application of printed adhesive vinyl film onto surfaces to create durable, high-impact advertising displays. The industry term is “vehicle wrap” or “surface wrap signage,” and it covers everything from fleet vehicles and shop fronts to building facades and interior walls. A full professional vehicle wrap costs between £500 and £5,000 with installation completed in 2–3 days, compared to a paint job at £5,000 to £20,000 taking several weeks. That cost gap alone explains why branded signage has become the default choice for businesses that need visible, flexible branding without committing to permanent changes.
What is vinyl wrap signage and what surfaces does it cover?
Vinyl wrap signage is a large-format adhesive film applied to vehicles, building facades, windows, and interior surfaces to carry brand graphics or advertising messages. The film is printed using wide-format digital printers, then cut and applied by trained installers. Unlike paint, it is fully removable. That reversibility makes it especially useful for businesses that rebrand, run seasonal campaigns, or lease their vehicles and premises.
Common applications include fleet van wraps, retail window graphics, building hoardings, exhibition stands, and interior wall graphics. A vehicle wrap turns a delivery van into a mobile billboard. A building wrap transforms scaffolding or a plain facade into a large-scale advertisement visible from hundreds of metres away. Both formats use the same core material: pressure-sensitive vinyl with a release liner and an adhesive layer.
What materials are used in vinyl wrap signage?

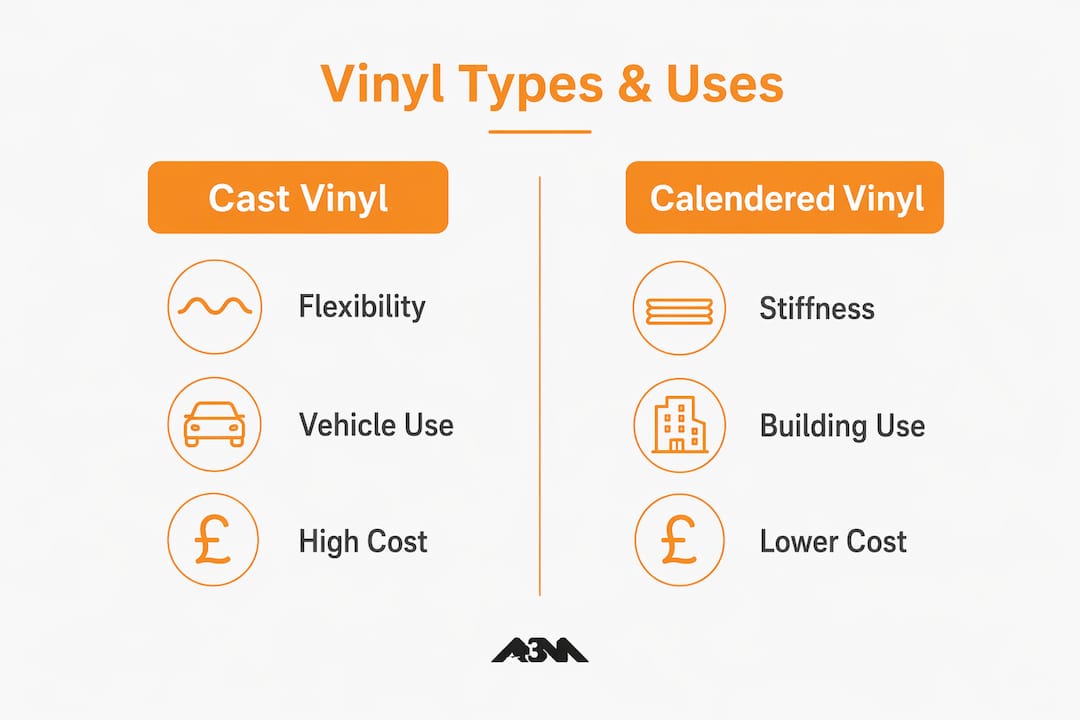

The two primary vinyl types are cast vinyl and calendered vinyl, and the difference between them matters significantly for durability and application.
Cast vinyl is manufactured by casting liquid PVC onto a release sheet, which produces a thin, stable, and highly flexible film. It conforms to curves, rivets, and complex contours without distortion. Cast vinyl is the correct choice for vehicle wraps and any surface with compound curves. Calendered vinyl on curves leads to premature edge lifting within 6–12 months. That failure mode is avoidable simply by specifying the right material at the outset.
Calendered vinyl is produced by pressing PVC through rollers, which creates a thicker, stiffer film at a lower cost. It performs well on flat or gently curved surfaces such as flat-panel signs, interior walls, and display boards. The trade-off is that it is prone to shrinkage over time, particularly in outdoor conditions, which makes it unsuitable for vehicle wraps or building wraps exposed to temperature swings.
Mesh vinyl serves a third, distinct purpose. Building wraps on window-heavy facades use mesh vinyl for facades because the perforations allow air and light to pass through. This reduces wind load on the structure and maintains visibility from inside the building. In high-wind locations, mesh vinyl is often mandated by building codes because it reduces scaffold strain and structural pressure.
| Vinyl type | Best surface | Key advantage | Key limitation |
|---|---|---|---|
| Cast vinyl | Vehicles, complex curves | Flexible, stable, long lifespan | Higher cost |
| Calendered vinyl | Flat panels, interiors | Lower cost, wide availability | Prone to shrinkage outdoors |
| Mesh vinyl | Building facades, windows | Air and light passage, wind-safe | Lower print opacity |
Pro Tip: Always specify cast vinyl for any surface with curves or recesses. Saving money on calendered vinyl for a vehicle wrap will cost more in early replacement than the initial saving is worth.

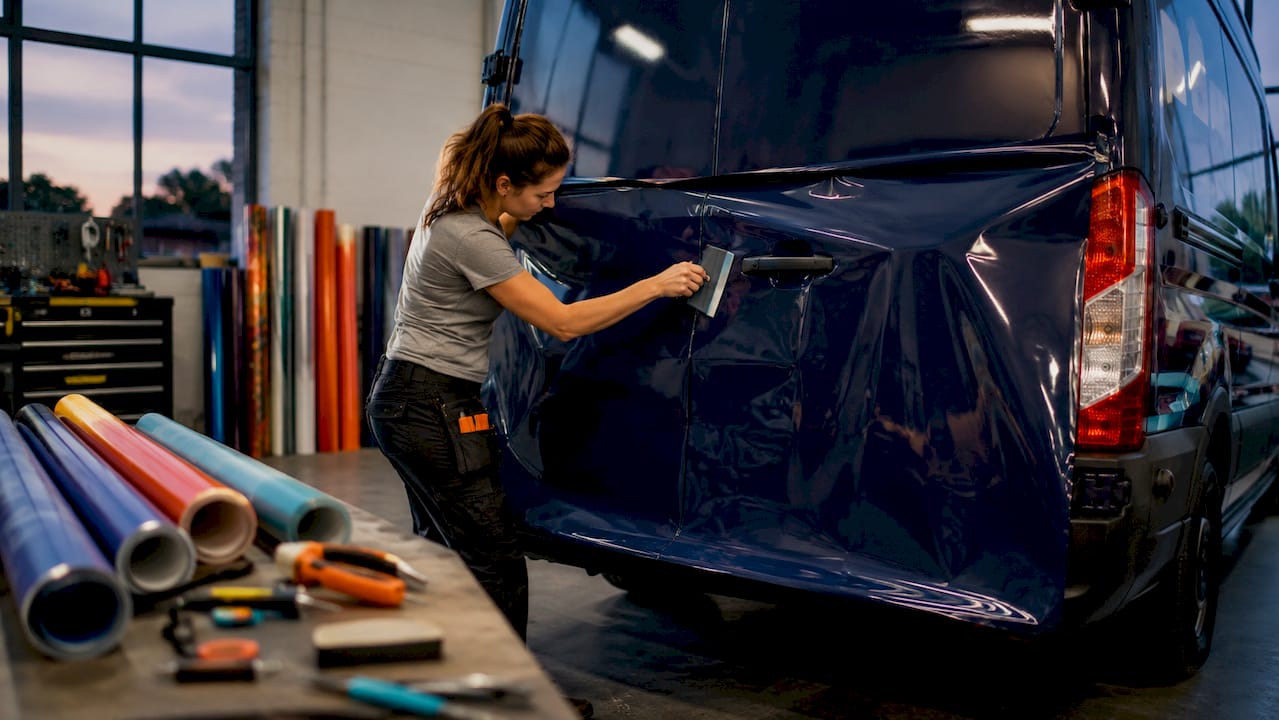

How is vinyl wrap signage applied to vehicles and buildings?
Professional installation follows a structured process. Skipping any stage reduces the lifespan of the wrap and increases the risk of bubbling, lifting, or distortion.
-
Surface preparation. The substrate must be thoroughly cleaned to remove wax, silicone, grease, and grime. Contaminants prevent the adhesive from bonding correctly. For vehicles, this means a full decontamination wash. For buildings, pressure washing and allowing the surface to dry completely.
-
Alignment and positioning. The installer positions the vinyl panel without activating the adhesive, checking alignment against reference points. Large panels are handled by two or more installers to prevent creasing.
-
Squeegeeing. The vinyl is pressed onto the surface using a felt-edged squeegee, working from the centre outward to push air bubbles to the edges. Air-release liner technology in premium cast vinyl makes this stage significantly easier by channelling trapped air out through micro-channels in the adhesive.
-
Heating and stretching. A heat gun is used to warm the vinyl around edges, recesses, and curves. Post-heating vinyl at 80°C to 100°C removes the film’s memory, preventing it from trying to return to its original flat shape. This step is the single most important factor in preventing edge lifting.
-
Final inspection and trimming. Edges are trimmed cleanly, and the installer checks for any remaining bubbles or lifted sections. A post-heat pass over the entire surface sets the adhesive fully.
Building wraps follow the same principles but at a much larger scale. Panels are typically installed from scaffolding or a cherry picker, working top to bottom. Permit acquisition before installation often takes 2–4 weeks in major cities, so factoring this into your project timeline is non-negotiable. A building wrap installation itself can take several days to a week depending on facade size.
Pro Tip: Never apply vinyl in temperatures below 10°C. Cold adhesive bonds poorly and increases the risk of lifting within weeks. Schedule outdoor installations for spring or summer wherever possible.
What are the benefits of vinyl wrap signage compared to paint?
The benefits of vinyl wraps extend well beyond cost. The financial case is clear: a vehicle wrap costs less than repainting and can be removed when rebranding or selling, preserving the vehicle’s resale value. Paint is permanent and depreciates with the vehicle. A wrap protects the original paintwork underneath, which is a meaningful asset protection argument for fleet managers.
The branding advantages are equally strong. Custom vinyl signage delivers full-colour, photographic-quality graphics at a scale that painted signs cannot match economically. A fleet of ten vans wrapped in consistent brand graphics creates a unified visual identity across every journey those vehicles make. Each van becomes a moving advertisement, generating impressions in every street, car park, and delivery location it visits.
Durability is a genuine strength when the right materials are used. Building vinyl wraps have a lifespan of 5 to 10 years when professionally installed. Vehicle wraps using premium cast vinyl typically last 5–7 years under normal conditions. UV-resistant laminates extend this further by protecting the printed layer from fading.
- Reversibility. Wraps are removable without damaging the substrate, making them ideal for leased assets or seasonal campaigns.
- Speed. A vehicle wrap is completed in 2–3 days. A full respray takes weeks.
- Customisation. Every panel can carry different graphics, enabling targeted regional or campaign-specific messaging.
- Protection. The vinyl layer shields original paintwork from minor abrasions and UV degradation.
- ROI visibility. Mobile advertising generates impressions continuously, unlike static media with fixed placement costs.
For businesses comparing vinyl decals vs full wraps, the full wrap delivers maximum visual impact but requires a larger upfront investment. Partial wraps and decals suit tighter budgets while still delivering brand presence.
How do you plan and design effective vinyl wrap signage?
Design for vinyl wrap signage is not the same as designing for print or screen. The scale, the three-dimensional surface, and the viewing distance all change what works visually.
Vehicle wrap designs require precise templates matched to the exact make and model of the vehicle. A template that does not account for door handles, wheel arches, and panel seams will produce a wrap that looks distorted or misaligned when installed. The design and file preparation phase is often the invisible cost of wrap projects. Businesses that underestimate it end up paying for reprints or accepting a substandard result.
Building wraps require a different approach entirely. Windows, columns, and architectural features should be integrated into the design rather than treated as obstructions. Designing around architectural features and previewing designs at actual scale prevents the most common failure: a graphic that looks strong on screen but reads as fragmented or confusing at full size on a building.
- Use high-resolution artwork (minimum 100 dpi at final print size for large-format work).
- Keep key messages and logos away from panel seams and door edges.
- Choose colours with strong contrast for maximum legibility at distance.
- Preview the design rendered onto a photograph of the actual vehicle or building before approving files.
- Avoid fine detail and small text, which become illegible at viewing distances above 5 metres.
Pro Tip: Ask your print supplier for a vehicle-specific or building-specific design template before briefing your designer. Starting from the correct template eliminates the most expensive design errors before they reach the production stage.
The large format print manufacturing process also influences design choices. Understanding how colours are reproduced at large scale, and how laminates affect finish and colour depth, helps you brief your designer with the right specifications from the start. For building wraps with significant outdoor exposure, a UV-resistant gloss or matte laminate is standard practice. For vinyl mesh banners used on scaffolding or facades, the perforation pattern affects how the design reads from different distances, which is worth testing before committing to a full production run.
Key takeaways
Vinyl wrap signage delivers the strongest return when cast vinyl, professional installation, and accurate design templates are combined from the start.
| Point | Details |
|---|---|
| Material choice is critical | Use cast vinyl for vehicles and curves; calendered vinyl suits flat surfaces only. |
| Installation process determines lifespan | Post-heating at 80°C–100°C and thorough surface prep prevent premature lifting. |
| Cost advantage over paint is significant | Vehicle wraps cost a fraction of a respray and are completed in days, not weeks. |
| Design must match the physical surface | Use make-specific or building-specific templates to avoid distortion and reprints. |
| Building wraps need planning lead time | Permit acquisition in major cities takes 2–4 weeks before installation can begin. |
Why I think most businesses underestimate wrap signage as a brand asset
Most businesses treat a vehicle wrap or building wrap as a one-off marketing spend. That framing leads to poor decisions: choosing cheaper calendered vinyl to save a few hundred pounds, skipping professional installation, or briefing a designer without a proper template. The wrap fails early, looks poor, and the business concludes that wraps “don’t work.”
The businesses that get genuine value from wrap signage treat it the way they treat any other brand asset. They specify cast vinyl because they understand it protects the vehicle underneath and lasts long enough to justify the cost. They use certified installers because they know that surface preparation and post-heating are the difference between a five-year wrap and a one-year replacement. They brief designers with accurate templates because they have seen what happens when a graphic is designed blind to the physical surface.
Viewing wraps as long-term asset management tools helps businesses justify premium material choices and protects fleet value. That shift in thinking is the single most useful thing I can offer here. A well-specified, professionally installed wrap on a fleet vehicle is not a cost. It is a depreciating asset that generates advertising impressions every day it is on the road, while simultaneously protecting the paintwork that supports the vehicle’s resale value.
The design phase is where I see the most waste. Businesses approve artwork without previewing it at scale, or without checking how it reads across panel seams. The reprint cost and the delay are entirely avoidable. Invest in the template, preview the design on a photograph of the actual vehicle, and get the file right before it goes to print.
— Steve
A3m’s vinyl wrap and large format signage solutions
A3m produces professional-grade vinyl wrap signage for businesses across the UK and Europe, with in-house large format print manufacturing that covers everything from fleet vehicle graphics to full building wraps.
Working with A3m means your artwork is prepared using accurate vehicle and building templates, printed on premium cast vinyl with UV-resistant laminates, and supported by installation guidance from experienced professionals. Whether you need a single vehicle wrap, a retail window graphic, or a large-scale building wrap for a commercial property, A3m’s custom signage solutions are built to perform in real-world conditions. For businesses looking at the broader picture of print-based brand marketing, A3m’s large format print benefits cover the full range of applications from exhibition stands to branded environments.
FAQ
What is vinyl wrap signage used for?
Vinyl wrap signage is used to brand vehicles, building facades, windows, and interior surfaces with printed adhesive vinyl film. Common applications include fleet van wraps, retail shop fronts, building hoardings, and exhibition graphics.
How long does vinyl wrap signage last?
Building wraps last 5–10 years when professionally installed, and vehicle wraps using premium cast vinyl typically last 5–7 years. Lifespan depends on material quality, UV exposure, and the standard of installation.
Is vinyl wrap signage better than paint for vehicles?
Vinyl wrap signage costs significantly less than a full respray, is completed in 2–3 days rather than weeks, and protects the original paintwork underneath. It is also fully removable, which preserves the vehicle’s resale value.
What is the difference between cast and calendered vinyl?
Cast vinyl is flexible and stable, making it suitable for vehicles and curved surfaces. Calendered vinyl is cheaper but prone to shrinkage and edge lifting on curved surfaces, so it is best used on flat panels and interiors only.
Do building wraps require planning permission?
Building wraps often require permits before installation, and in major UK cities this process can take 2–4 weeks. Always confirm local planning requirements before scheduling installation to avoid project delays.
