A dieline is the flat, vector blueprint that shows exactly where a package will be cut, creased, perforated and glued. Before you draw a single logo, get this one action done: request the supplier’s official dieline file rather than sketching your own from a generic template. That single step avoids the most common beginner error we see at A3m.
- Definition: a vector map of every cut, fold, perforation and glue point on a package
- First action: ask your converter or manufacturer for their dieline, not a downloaded stand in
- Software: most professionals build and check dielines in Adobe Illustrator
- Standard: a 3mm bleed is the common starting point for folding cartons
Pro Tip: Save the supplier’s dieline file the moment you receive it and never nest your artwork inside a downloaded template you found online. Dimensions that look close enough rarely match the actual cutting die.
Key Takeaways
Getting a dieline right depends on treating structure as the starting point, marking the dieline layer as non-printing, and confirming bleed and safe zone values with your specific converter before artwork begins.
| Point | Details |
|---|---|
| Structure comes first | Request the supplier’s dieline before starting artwork rather than fitting design around a generic template. |
| Know the five core elements | Cut lines, crease lines, bleed, safe zone and glue tabs are the parts every dieline shares. |
| Bleed varies by material | Folding cartons typically use 3mm bleed; heavier board often needs 5mm or more. |
| Mark the layer non-printing | An unmarked dieline layer can print directly onto the finished carton if the RIP misreads it. |
| Prototype before production | A3m’s in-house prototyping and preflight support helps catch orientation and structural errors before a full run. |
Useful resources for building your first dieline
- How to read a packaging dieline, a visual walkthrough of dieline conventions
- Step-by-step guide to a print-ready dieline
- Always confirm bleed and safe zone figures directly with your own converter rather than assuming a generic guide applies
Table of Contents
- What are the parts of a packaging dieline?
- How do you create a dieline in Adobe Illustrator?
- Design rules for text, images and finishes on a dieline
- What should you include when sending files to the printer?
- What are the most common dieline mistakes?
- How long does dieline-to-production actually take?
- A production lead’s take on dieline discipline
- When should you bring in a production partner for your packaging?
- Frequently asked questions about dieline basics
- Sources
What are the parts of a packaging dieline?
A dieline is built from a handful of recurring elements, and once you can name them, you can read any carton layout in seconds. Cut or trim lines mark exactly where the die will slice through the board, usually shown as a solid stroke. Crease or score lines, which tell the board where to fold, are typically dashed and sit on their own spot colour so the die-maker and press operator can separate the two operations. Mixing these two up on a layered file is one of the fastest ways to send a converter back to you with questions.
Bleed is the margin your artwork extends past the cut line, so any colour or image printed to the edge doesn’t leave a white sliver after trimming. The safe zone is the inverse: a buffer inside the cut line where nothing critical, like text or a barcode, should sit, because slight movement during cutting can clip anything too close to the edge.
Most folding-carton jobs run on 3mm of bleed, though heavier corrugated or rigid board often needs 5mm or more, so always confirm the figure with your specific converter rather than assuming one size fits all.
- Perforations: dotted lines showing where the material tears, used on coupons or easy-open tabs
- Glue tabs: the panels that get adhesive applied during assembly, best kept free of heavy ink
- Panel orientation: how each flat panel folds and rotates into its final 3D position
Get panel orientation wrong and a logo that looked perfectly upright on the flat file can print upside down once the box folds. Always trace the fold sequence with your finger on the flat artwork before you place a single graphic.
How do you create a dieline in Adobe Illustrator?
Once you have the supplier’s dieline file, the workflow in Illustrator follows a logical order. Skipping steps here is exactly how beginners end up designing the front panel first and forcing the structure to fit around it afterwards, rather than the other way round.
- Set up the document in CMYK colour mode, matched to the exact artboard dimensions your supplier confirmed, and check any placed raster images sit at 300ppi.
- Build your layer structure: a locked top layer named “Dieline,” with sub-layers for Cut and Crease, sitting above your artwork layers, and a separate layer for any special finishes.
- Assign spot colours: give the cut line and crease line distinct named spot colours (many studios simply call them “Die Cut” and “Crease”) and set consistent stroke weights so nothing gets confused with printable artwork.
- Mark the dieline layer as non-printing, or as a template layer, in Illustrator’s layer options.
- Add bleed and safe zone guides: use the Offset Path tool to generate your bleed line automatically from the cut path, rather than drawing it freehand.
- Place and test your artwork against those guides, checking every panel against its folded orientation.

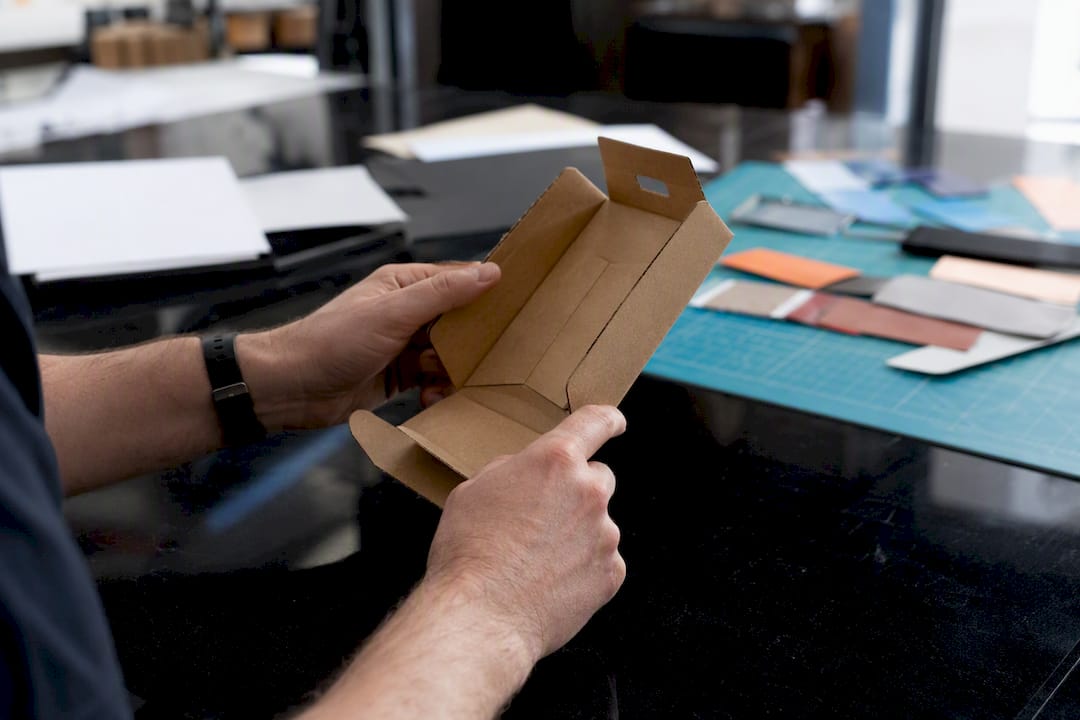

- Print, cut and hand-fold a paper mock-up before you finalise anything. A quick physical prototype catches assembly and orientation errors that are invisible on screen, every time.
Pro Tip: Use Illustrator’s Offset Path feature (Object > Path > Offset Path) to generate a bleed line automatically from your cut path. Typing the same 3mm figure four times by hand is where measurement errors creep in.
Once your paper mock-up folds correctly, request an actual physical sample from your supplier before committing to a full production run. It’s a small delay that saves a much bigger one later.
Design rules for text, images and finishes on a dieline
Good dieline discipline is what separates artwork that survives cutting from artwork that needs a reprint. Keep every piece of critical text, logos and barcodes well inside the safe zone, leaving generous clear space from both crease lines and cut edges. Backgrounds and photography, by contrast, should extend fully into the bleed area so there’s no risk of a white edge appearing after trimming.
- Keep raster images at 300ppi and in CMYK, never RGB, to avoid dull or shifted colours at print
- Never place a logo or wordmark across a fold line, since the crease will physically distort it
- Plan every graphic against its panel’s final folded orientation, not its flat position
- Put foil, spot UV or embossing on their own clearly named layers, and flag them to your converter early, since these finishes affect tooling and lead times
Regulatory content such as ingredient lists or compliance marks also needs planning at this stage, particularly where mandatory text must and must not appear on the finished pack.
Pro Tip: Colour management matters as much as layout. If you’re unsure why your CMYK proof looks different from your screen, this ICC colour profile guide explains the mechanics simply.
What should you include when sending files to the printer?
A dieline only stays accurate if the file format and information around it survive the handoff intact. Dielines must be exported as vector files, never as JPGs or PNGs, because the cutting die is built from precise vector geometry.
| Element | What to check |
|---|---|
| File format | Native AI file or layered PDF/X-4 (or PDF/X-1a if the printer requests it) |
| Fonts | Outlined or fully embedded, never left as live linked type |
| Images | Linked at full resolution, embedded where the workflow requires it |
| Colours | Named Pantone spot references alongside CMYK build values |
| Dieline layer | Explicitly marked non-printing or template, with overprint settings confirmed |
Your printer README should also state final dimensions, the substrate and board caliper, and which layers must never print. For a deeper look at file prep beyond the dieline itself, this guide to print artwork file preparation covers the wider preflight process.
What are the most common dieline mistakes?
Most reprints trace back to a handful of repeatable errors, and an unmarked dieline layer is one of the costliest: if a RIP doesn’t recognise it as non-printing, those cut and crease lines can print straight onto the finished carton.
- Sending artwork with the dieline still visible or unmarked as a template
- No bleed, or bleed copied from a different job with different board thickness
- Artwork or text crossing fold lines undetected
- Heavy ink or coating applied over glue tab areas, weakening adhesion
- Colours built in RGB instead of CMYK
- Fonts left live instead of outlined or embedded
Run through that list before every file goes out. It takes minutes and it’s the difference between a smooth job and a delayed one, something covered in more depth in this look at common print procurement mistakes.
How long does dieline-to-production actually take?
For a standard folding carton, expect roughly 1 to 3 days for dieline and artwork preparation, 2 to 7 days for a prototype sample, and 5 to 14 days for the production run itself, though every supplier and material combination shifts these numbers. Cost is driven by die tooling (a one-off charge), material choice between folding carton and corrugated board, the number of colours and finishes, and your total run quantity.
- Die tooling is typically a fixed, one-off cost regardless of quantity
- Corrugated board generally costs more per unit than folding carton stock
- Extra spot colours or finishes like foiling add both cost and lead time
- Larger run quantities reduce the per-unit cost but extend production scheduling
A production lead’s take on dieline discipline
The single habit that saves the most reprints isn’t clever design work, it’s discipline around the dieline layer itself. Set it as non-printing, confirm it in your export, and keep glue tabs completely free of heavy ink or coating. Those two checks alone catch the mistakes that cost the most time and money once a job hits the press.
When should you bring in a production partner for your packaging?
Once your project involves a custom structure, a specialist finish like foiling or embossing, or a deadline that leaves no room for trial and error, doing it entirely in house gets risky. That’s the point where a production partner with in-house manufacturing earns its keep.
A3m works with businesses across hospitality, retail, events and beyond to take packaging and print projects from prototype through to finished production, without the back-and-forth that comes from managing tooling, proofing and converter communication yourself. Our in-house capabilities mean prototyping, specialist finishes and file preflight all happen under one roof, so a dieline error gets caught before it becomes a costly reprint rather than after. If you’re weighing up whether to manage your next packaging or large format project in house, explore what our large format print manufacturing service can do for your next production run and get in touch to talk through your specification.

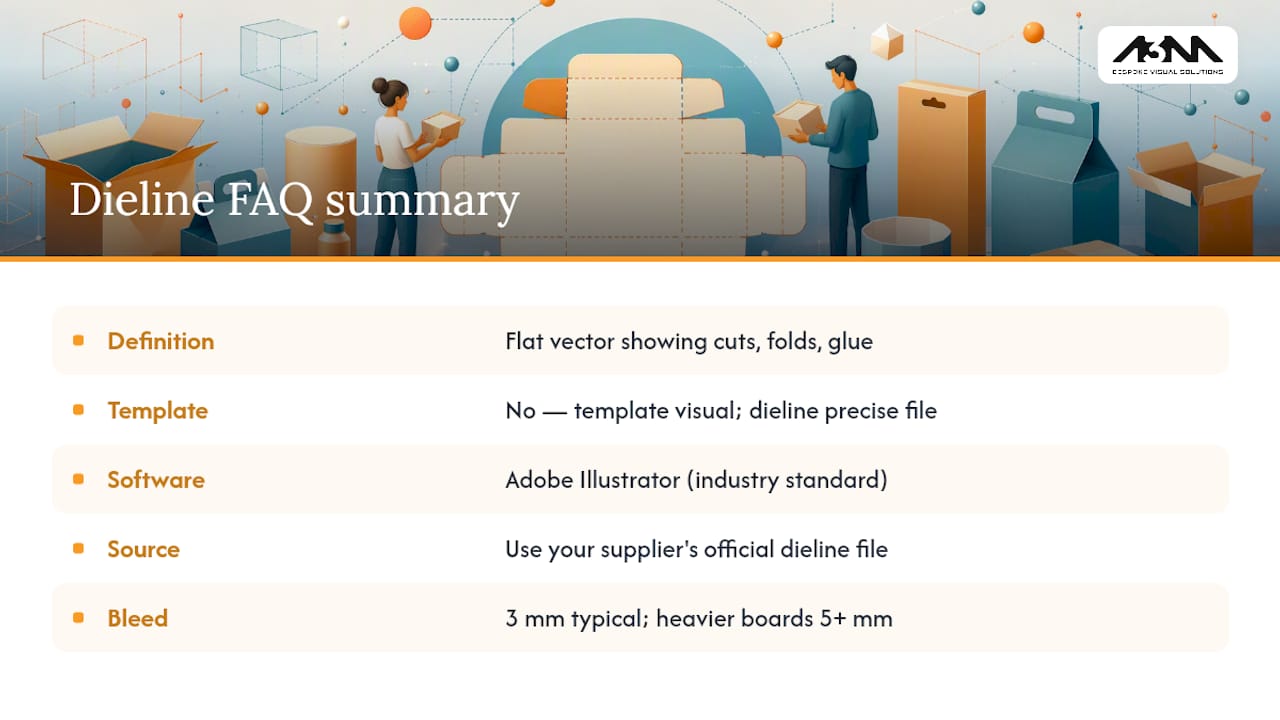

Frequently asked questions about dieline basics
What is a packaging dieline in simple terms?
A dieline is a flat vector drawing showing every cut, fold, perforation and glue point needed to build a package, used to manufacture the physical cutting die.
Is a dieline the same as a template?
No. A template is a general visual guide, while a dieline is a production file with precise geometry used to cut real board.
What software do most designers use for carton dieline basics?
Adobe Illustrator is the industry standard, thanks to its vector precision, layer controls and spot colour handling for cut and crease lines.
Where can I get a dieline template for beginners?
Always start with your supplier’s official file rather than a downloaded template, since dimensions and tolerances vary between converters and materials.
How much bleed should I use on a carton?
Around 3mm is standard for folding cartons, with heavier boards sometimes needing 5mm or more. Confirm the exact figure with your converter for each job.
