Exhibition stand lighting: the complete UK buyer's guide

For most stands, the right starting mix is LED spotlights for product focus, LED strip or tape for backlit graphics, and one or two LED floods for ambient wash on larger builds. LEDs deliver lower running costs, longer lifespans, and the colour accuracy your printed panels deserve. If you want a bespoke lighting scheme specified and installed to UK compliance standards, get in touch with A3m for a site-specific quote.

Key takeaways

Effective exhibition stand lighting combines CRI 90+ LED spotlights, backlit strip profiles, and ambient flood heads, specified against your venue’s power allocation and UK compliance requirements before build begins.

Point Details
Recommended lighting mix LED spotlights (CRI 90+) for products, LED strip for backlit graphics, and flood heads for ambient wash on larger stands.
Wattage by stand size 16W–25W per light for 10x10 stands; 25W–35W for 10x20; 35W–50W for 20x20+ builds.
Colour temperature choice Match K to brand tone: 3000K for warm lifestyle brands, 4500K neutral for general merchandise, 5000K+ for tech.
UK compliance essentials Check UKCA/CE marking, EVA circuit load limits (1,200 VA max per multi-fitting circuit), and venue-specific PAT requirements.
Test before the show Photograph your stand with the device your team will use on the day and adjust any fixtures that create hotspots or colour casts.
A3m’s end-to-end service A3m specifies, manufactures, installs, and warrants bespoke exhibition stand lighting with full UK compliance handling.

Table of Contents

What types of exhibition stand lighting should you use?

The fixture you choose shapes everything: where visitors look first, how your graphics read under show-hall conditions, and how much power you draw from the venue supply. A layered approach combining ambient, accent, and feature lighting guides visitor movement and increases dwell time far more effectively than flooding the whole stand evenly.

  • LED spotlights / arm lights. The workhorse of trade show lighting. Adjustable beam angles (typically 15°–45°) let you direct a tight pool of light onto a product or panel. Ideal for jewellery, premium goods, or any display where colour accuracy matters. Low heat output compared with halogen equivalents.
  • LED flood / wash lights. Broader beam (60°+) for ambient fill across large graphic walls or open-plan stands. Good for 20x20+ builds where you need even coverage without harsh shadows.
  • LED strip / tape lights. Thin, flexible, and linkable. The go-to for backlighting fabric pop-ups, lightbox frames, and under-shelf illumination. Heat output is minimal, which matters for heat-sensitive print substrates.
  • Linear profiles / lightboxes. Purpose-built for edge-lit or backlit SEG (silicone edge graphic) fabric frames. The diffuser panel spreads light evenly across the print face, eliminating hotspots. A3m’s illuminated displays use this approach to maximise graphic impact.
  • Adjustable track systems. A rail mounted to the stand frame carries multiple spotlights that slide and rotate independently. Useful when the product layout changes between shows.
  • Battery-powered and portable options. Rechargeable LED puck lights, clip-on spots, and wireless strip kits suit shell-scheme stands where hard-wiring is restricted or where you need a quick top-up light in a corner. Runtime varies; always carry spares.

Each type has trade-offs. Spotlights give control but need precise aiming. Floods are forgiving but can wash out fine detail. Strip lights are versatile but require a clean channel or profile to look professional rather than DIY.

Which specs actually matter when comparing exhibition booth lighting?

Technical datasheets can feel overwhelming. Here is what each figure means in practice, and the thresholds worth insisting on.

Specification What it means Recommended threshold for most stands
Lumens Total light output from the fixture 800–1,200 lm per spotlight for a 10x10 stand
Watts Power consumed 16W–25W per light for 10x10; 25W–35W for 10x20; 35W–50W for 20x20+
CRI (Colour Rendering Index) How accurately colours appear vs. natural daylight (max 100) 90+ for any product or graphic-facing light
Colour temperature (K) Warm (2700K) to cool daylight (6500K) 3000K for lifestyle/warm brands; 4500K neutral for general merchandise; 5000K+ for tech
Beam angle Spread of the light cone 15°–25° spot for focal points; 40°–60° flood for ambient wash
IP rating Protection against dust and moisture IP20 for indoor stands; IP44+ for outdoor or damp environments
UKCA / CE marking UK/EU product safety certification Required — do not accept unmarked fixtures
Dimming protocol How brightness is controlled DALI or 0–10V for smooth, flicker-free dimming

CRI is the specification most buyers overlook, yet it has the biggest impact on how your printed graphics and products read under show lighting. A CRI of 85 can make a rich navy look grey and a warm coral look muddy. Choosing CRI 90+ first, then matching colour temperature to your brand tone, is the most reliable sequence for product-facing lighting.

Pro Tip: If your stand travels to different shows with different product mixes, specify a tunable dual-CCT arm light (switchable between 3000K and 5000K). One fixture covers lifestyle events and tech shows without buying separate kits.

Beam angle and mounting height work together. A 25° spot at 2.5m height creates a tight, high-contrast pool roughly 1.1m in diameter. Drop the same fixture to 1.8m and the pool shrinks to around 0.8m. Knowing your stand’s ceiling height before you order prevents the common mistake of buying spots that either miss the product entirely or spill onto the floor.

How do you mount lights and manage power on a stand?

Getting the physical installation right avoids the two most common on-site crises: fixtures that won’t attach to the frame and a tripped circuit breaker thirty minutes before doors open.

Mounting methods

  • Long-arm clamps grip onto aluminium extrusion frames (the standard for modular stands) and allow height and angle adjustment without tools.
  • Track systems bolt to a top rail and carry multiple heads; they suit stands where the product layout shifts between events.
  • Magnetic fittings work on steel-framed systems and pop-up displays; fast to attach, but confirm the frame material before ordering.
  • Any fitting heavier than 10 kg needs a secondary safety suspension wire in addition to its primary fixing. The Exhibition Venues Association electrical regulations require this for suspended fittings, and venue inspectors will check it.

Power planning

  • Add up the wattage of every fixture, then add 20% headroom. A 10x10 stand running six 25W spotlights draws 150W; a 20x20 build with floods and strip lighting can easily reach 800W–1,200W.
  • The EVA regulations cap lighting circuits serving more than one fitting at 1,200 VA (800 VA for discharge lighting). Plan your circuits accordingly, and never daisy-chain extension leads beyond the venue’s permitted load.
  • Confirm with the venue organiser whether power is included in your space fee or charged per kilowatt-hour. Many UK venues charge separately for power above a base allocation.

On-site control

  • Linkable LED drivers let you connect multiple strip runs to a single power supply and dimmer, keeping cable runs tidy.
  • A local rotary dimmer on each circuit gives you fast on-site adjustment when the hall lighting changes between set-up and show hours.
  • For larger or multi-zone stands, a DMX controller gives scene-by-scene control from a single unit.

Hard-wired or high-load installations must be completed by a qualified show electrician. Check the venue’s approved contractor list in advance; many UK exhibition centres require all electrical work to be signed off by their own team.

Which lights work best with different display materials?

The material your graphics are printed on changes everything about how light behaves. Getting this pairing wrong produces hotspots, colour shifts, or visible seams that undermine an otherwise strong stand.

Fabric pop-ups and SEG frames respond best to LED strip or linear profiles mounted inside the frame. The diffuser spreads light evenly across the face. Use a CRI 90+ strip at 4000K–4500K for clean, neutral rendering. Avoid spotlights aimed directly at fabric from close range; the cone creates a bright centre and dark edges that reads poorly in photographs. How your graphics and lighting work together is worth thinking through before you finalise either element.

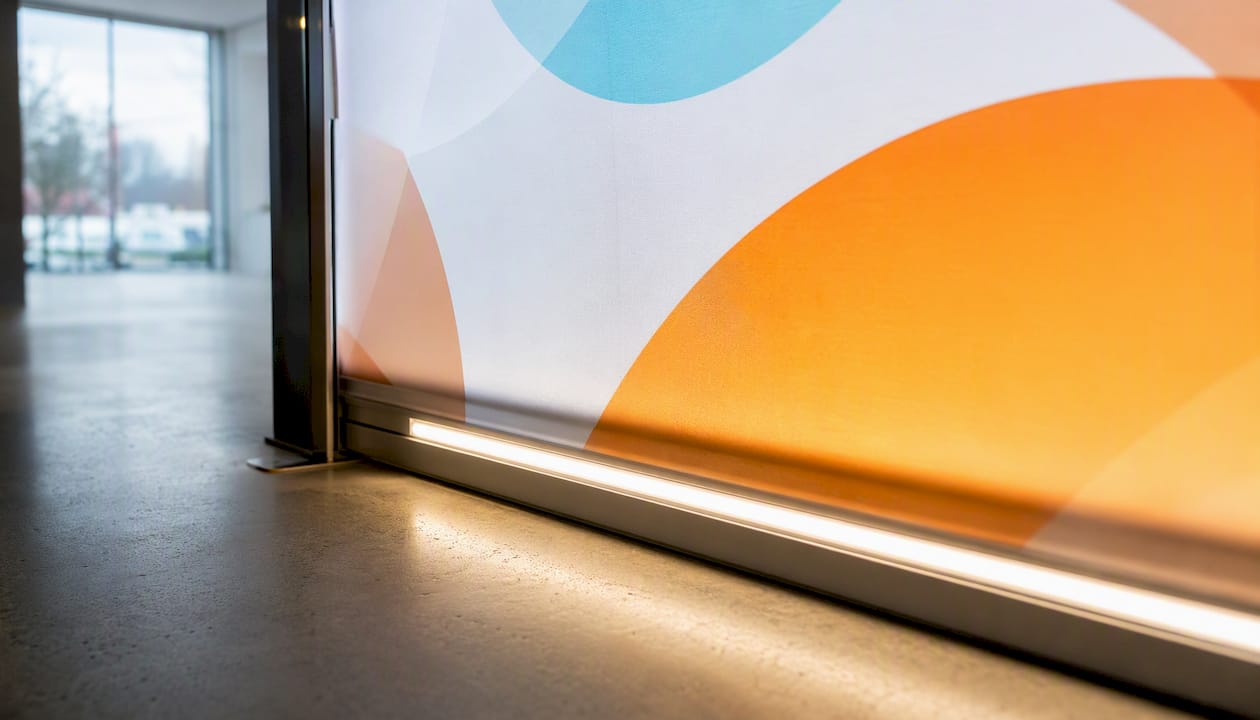

LED strip illuminating fabric pop-up exhibition frame

Printed PVC and foamex panels are more forgiving but glossy laminates create specular reflections. Position spotlights at a 30°–45° angle to the panel face rather than head-on, and avoid high-gloss laminates if the stand will be photographed for marketing use.

Timber, veneer, and painted walls absorb more light than fabric or PVC. You will need higher lumen output to achieve the same perceived brightness, and warm 3000K–3500K sources tend to complement natural materials better than cool white.

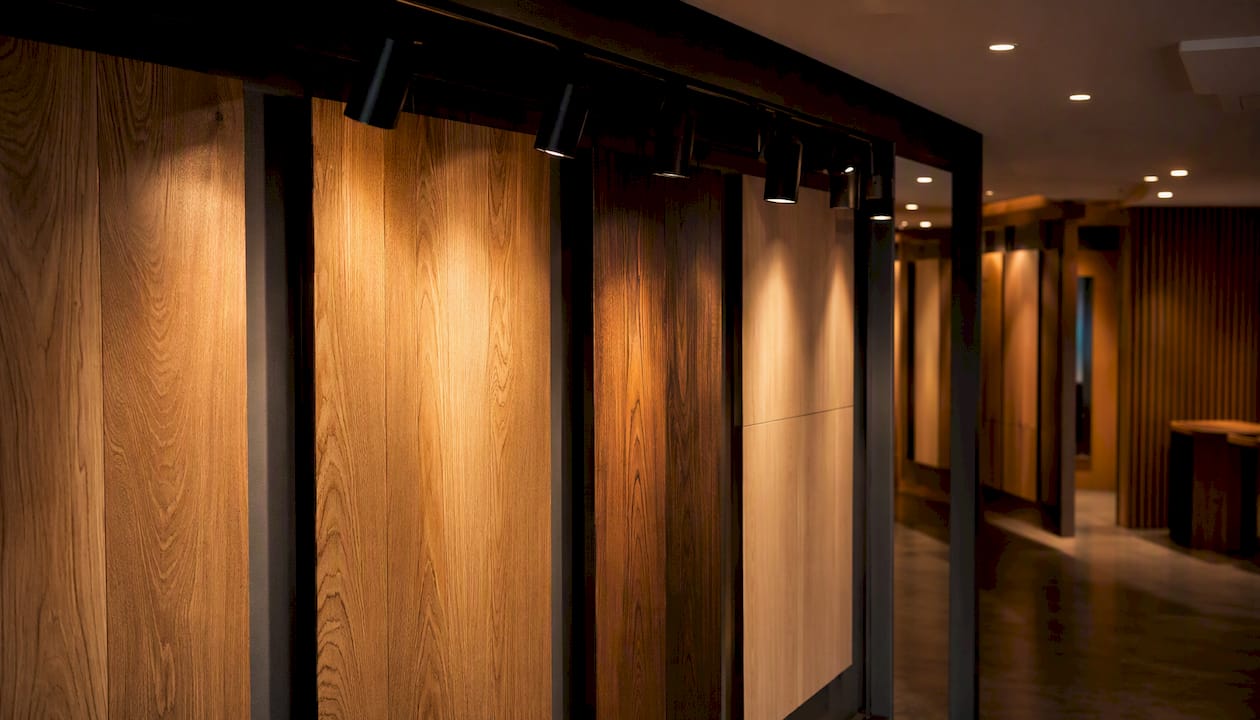

Warm LED spotlights illuminating timber exhibition walls

Glass cases and showcases need internal lighting or a tightly aimed external spot. The EVA regulations include specific rules for internally illuminated showcases; confirm your fitting meets the requirements before the show.

Backlit lightboxes are purpose-built for even illumination. The key variable is the distance between the LED strip and the diffuser panel: too close and you see individual LED hotspots; too far and brightness drops. A3m’s in-house manufacturing process accounts for this geometry at the design stage.

Always test your chosen fixture against a sample of the final printed substrate before the show. Photograph the result under conditions that approximate the venue’s ambient light level. Colours that look perfect in your studio can shift noticeably under the mixed metal-halide and LED wash typical of large UK exhibition halls.

What does exhibition stand lighting cost, and where can you save?

Budget varies widely depending on fixture quality, stand size, and whether you hire or buy. These are indicative ranges for UK builds; venue electrical charges are additional.

Cost drivers to understand first

  • Fixture CRI and colour control: high-CRI LEDs cost more upfront but rarely need replacing mid-show.
  • Driver and dimming capability: a dimmable DALI driver adds cost but pays back in flexibility across multiple events.
  • Bespoke mounting and fabrication: custom-built lighting channels or integrated lightbox frames add to the build cost but look far more polished than off-the-shelf clamp fittings.
  • Installation labour and show electrical charges: budget for a qualified electrician’s time on-site, plus any venue power connection fees.

Indicative budget bands

  • Small stand (10x10): A basic kit of two or three LED arm lights with a 16W–25W output per fixture sits at the lower end of the budget. A properly specified CRI 90+ setup with a dimmable driver and tidy cable management costs more but performs reliably across multiple shows.
  • Medium stand (10x20): Adds flood lighting for ambient wash and typically requires a more capable power supply. Expect proportionally higher installation time.
  • Large stand (20x20+): Full layered schemes with track systems, integrated lightboxes, and DMX control represent a significant investment, but the per-show cost drops considerably if the stand is reused across a season.

Where LED saves you money

LEDs draw significantly less wattage for equivalent lumen output compared with halogen or fluorescent alternatives. On a multi-day show where venue power is metered, that difference adds up. LED lifespans measured in tens of thousands of hours also mean you are not replacing lamps between events. A modular, tunable LED kit bought once and reused across different show types is more cost-effective than purchasing fixed single-CCT fixtures for each event.

Maintenance, safety, and UK compliance before installation

A stand that fails a venue electrical inspection on set-up day costs you far more than the time spent on pre-show checks. Work through this list before every event.

Routine maintenance tasks

  • Inspect drivers for signs of overheating or discolouration after each show.
  • Clean optics and diffuser panels with a dry microfibre cloth; dust reduces lumen output noticeably over a season.
  • Check all mounting fastenings and secondary suspension wires before re-erecting.
  • Test dimmer function and confirm all linked circuits respond correctly.
  • Charge and test backup batteries on portable units at least 48 hours before the show.

UK compliance checkpoints

The EVA electrical regulations are the baseline for UK exhibition electrical installations. Key requirements include circuit load limits (1,200 VA maximum for multi-fitting lighting circuits), secondary suspension for heavy fittings, and specific rules for internally illuminated signs and showcases. UKCA marking (or CE marking for goods placed on the UK market before the transition period) confirms the fixture meets UK product safety requirements. PAT testing applies to portable electrical appliances; confirm with your venue whether they require a PAT certificate for your equipment. Always check venue-specific requirements in advance, as major UK exhibition centres sometimes add their own conditions on top of the EVA baseline.

Red flags when buying

  • No driver specification or wattage data on the product listing.
  • Missing or unverifiable UKCA/CE marking.
  • Supplier unable to confirm IP rating for the stated environment.
  • No written warranty or stated lamp lifetime.
  • Vague or absent compliance paperwork.

Your buying checklist and the questions to ask every supplier

Objective needs checklist

  1. Measure your stand footprint and ceiling height before shortlisting any fixture.
  2. List every focal point: products, graphics, reception counter, seating area.
  3. Confirm your venue power allocation and whether a show electrician is required.
  4. Set your minimum CRI (90+ for product-facing lights) and colour temperature range.
  5. Decide whether you need dimming and, if so, which protocol (DALI, 0–10V, or local rotary).

Supplier questions to ask

  • Can you provide UKCA/CE documentation and a copy of the driver specification?
  • What is the stated lumen output and CRI at operating temperature (not just peak)?
  • Does the dimming driver support flicker-free operation at all brightness levels?
  • What warranty do you offer, and does it cover the driver as well as the LED module?
  • Can you supply a sample fixture for testing against our final printed panels before we order?
  • What is your lead time, and can you support on-site installation and post-show collection?

Contractual red flags

  • No written installation plan or cable-routing diagram.
  • Warranty that excludes the driver or covers “manufacturing defects only” without definition.
  • No spares policy for replacement drivers or LED modules.

From shortlist to order

  1. Test a sample fixture against your final printed substrate under approximate show-hall conditions.
  2. Confirm site electrician requirements with the venue and book accordingly.
  3. Sign off on a mounting plan that shows fixture positions, cable runs, and circuit loads.
  4. Schedule installation and an on-site test before the hall opens to visitors.

How A3m designs and delivers exhibition stand lighting

A3m’s process starts with a brief and a site plan. The team maps focal points, confirms the venue’s power allocation, and specifies fixture types, wattage, and colour temperature before a single component is ordered. For stands with integrated lightboxes or backlit fabric frames, the lighting geometry is resolved at the design stage so diffuser distances and LED strip densities are correct from the outset, not adjusted on-site.

A recent anonymised UK project illustrates the approach. A consumer goods brand needed a 10x20 island stand for a major London trade show. The brief called for product spotlighting across six display bays, backlit brand graphics on two walls, and a welcoming ambient wash at the entrance. A3m specified CRI 95 LED arm lights at 4500K for the product bays, integrated LED strip profiles inside SEG lightbox frames for the graphic walls, and a pair of 40° flood heads on the entrance canopy for ambient fill. The entire electrical load was calculated against the venue’s power allocation before build, avoiding any on-site surprises. The stand passed venue inspection on the first check, and the client reported noticeably higher footfall compared with their previous shell-scheme presence.

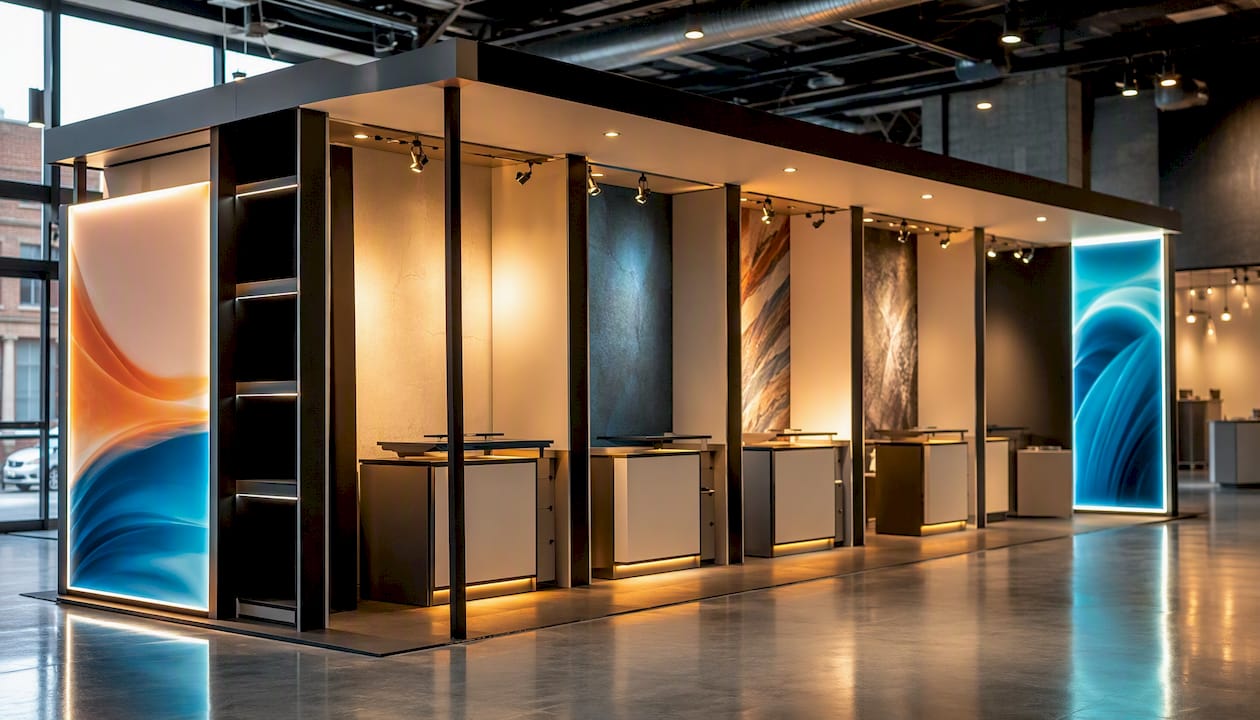

Modular exhibition stand illuminated with LED spotlights and backlit fabric frames

Trust signals matter when choosing a supplier. A3m handles UKCA compliance paperwork, provides written warranties covering both LED modules and drivers, and draws on in-house manufacturing to integrate lighting into the stand structure rather than treating it as an afterthought. For procurement leads who need a single point of accountability from design through to on-site sign-off, that matters.

What the lighting spec guides miss

There is a gap between what most lighting guides recommend and what actually determines whether a stand performs on the day. The guides focus on CRI and colour temperature, which are genuinely important, but they rarely mention the single biggest variable: how your lighting looks in a photograph.

Most of the value a well-lit stand generates comes after the show, in the images that appear on LinkedIn, in press coverage, and in your own marketing with visual content. A stand that looks brilliant to a visitor standing in front of it can look flat, orange, or blown-out in a phone camera image if the colour temperature is mismatched or the contrast ratio is too high. The fix is simple: before the show opens, photograph the stand with the same device your team will use on the day, adjust any fixtures that create hotspots or colour casts, and photograph again. This takes twenty minutes and saves you from publishing images that undermine the investment you have just made.

The other common mistake is mixing colour temperatures across the stand, typically because arm lights and strip lights were sourced separately. A 3000K spot next to a 5000K strip creates a visible colour boundary on any white or light-coloured surface. Specify all fixtures from the same colour temperature batch, or use a tunable fitting throughout.

A3m’s bespoke exhibition stand lighting service

A3m brings together bespoke exhibition stand design and build with in-house large-format print manufacturing, so your lighting and graphics are specified as a single integrated system rather than two separate purchases. The team handles fixture selection, compliance paperwork, installation, and on-site tuning, giving marketing managers and procurement leads one point of contact from brief to sign-off. Every build comes with written warranties covering LED modules and drivers, and A3m’s UK-based team can advise on venue-specific electrical requirements before you commit to a layout.

A3m

Whether you need a fully illuminated 20x20 island stand or a compact backlit display for a regional show, A3m’s process starts with your brief. Contact the team to request a quote or site survey, and find out how large-format print and integrated lighting can work together on your next event.

Sources

by Chris@a3m.co.uk

Hands comparing weights and thickness of brochure paper

Brochure paper weight: choose the right GSM for print

For most marketing brochures, 150gsm works well for inner pages and 250–300gsm for the cover. That pairing gives you a professional feel, keeps postage manageable, and suits both digital and litho presses. If you are printing a single-fold leaflet, 130–170gsm handles the job without needing scoring. For premium covers or menus, 300–350gsm is the standard.

Here is a quick reference range before you read further:

  • Inner pages (multi-page brochures): 130–170gsm, silk or gloss coated
  • Folded leaflets (single or bi-fold): 130–150gsm uncoated or silk
  • Standard covers: 250–300gsm, with lamination or aqueous varnish
  • High-end covers, menus, postcards: 300–400gsm, often with spot UV or foiling

One-line verdict: For a general-purpose marketing brochure, 150gsm inner pages paired with a 300gsm silk cover is the most reliable all-round specification.

Pro Tip: Ask your printer for a physical swatch of your chosen stock with the finish applied before you approve the job. A sample reveals bulk, shows how coatings render colour, and confirms fold behaviour before you commit to a full run.

Key takeaways

Choosing the right brochure paper weight comes down to matching GSM to use case, confirming compatibility with your print method, and accounting for folding, finishing, and postage before you place the order.

Point Details
Inner pages: 130–170gsm 150gsm silk coated is the most reliable choice for multi-page brochure inner pages.
Covers: 250–300gsm Pair with matt or gloss lamination; always specify scoring for stocks above 200gsm.
Score before folding Stocks above 200gsm will crack at the fold without scoring; confirm this with your printer.
High-bulk saves postage High-bulk stocks give a thicker feel at a lower GSM, keeping direct mail within lighter postage bands.
A3m for full specification A3m handles stock selection, proofing, scoring, finishing, and production for brochures across the UK.

Table of Contents

What does GSM mean, and how does it affect your brochure?

GSM stands for grams per square metre, the standard metric measurement for paper weight used across the UK print industry. A higher GSM generally means a heavier sheet, but weight and thickness are not the same thing.

Thickness is measured in microns (thousandths of a millimetre), and it depends on a paper’s bulk, not just its weight. A 300gsm silk-coated sheet can actually be thinner in microns than a 300gsm uncoated sheet, because the calendering process used to create a smooth coated surface compresses the fibres. London City Print confirms that bulk and finish both change perceived thickness, which is why two sheets with identical GSM can feel quite different in your hand.

For UK readers who encounter US print specs, the pound (lb) system is the one you will see on American supplier sheets. The conversion is approximate because lb values differ depending on whether the sheet is classified as “text” or “cover” stock. Conversion tools give practical approximations, but values vary by mill, finish, and bulk, so treat them as a guide rather than an exact figure.

Note: Micron values are typical commercial approximations. Actual thickness varies by mill, coating, and bulk grade. Always request a data sheet from your printer for exact figures.

Which paper weights suit which brochure types?

Common GSM bands map neatly onto specific print applications, and understanding those bands saves you from ordering stock that either feels flimsy or cracks at the fold.

90–120gsm: everyday and economy

This is standard office paper territory. It is rarely used for finished brochures, but it suits internal documents, draft proofs, and economy information sheets where cost per sheet matters more than tactile quality.

130–170gsm: the workhorse range for brochure inner pages

Most multi-page brochures use 130–170gsm for their inner pages. At 150gsm, a sheet feels noticeably more substantial than office paper without adding significant weight to a saddle-stitched booklet. This range also works well for single-fold leaflets and event handouts. A UK print-industry guide recommends 150gsm inner pages paired with a 250–300gsm cover as the standard pairing for a premium feel.

170–200gsm: light card and single-sheet flyers

At this weight, a sheet holds its shape well enough to stand alone as a flyer or a self-mailer. It is also a practical choice for short-run digital brochures where a separate cover stock is not practical. Folding at 200gsm starts to require care, which is covered in the next section.

200–300gsm: sturdy covers and premium single sheets

This is the cover stock range for most professional brochures. A 250gsm silk cover with a gloss or matt laminate gives a confident, premium feel. At 300gsm, the sheet approaches the weight of a light business card and suits restaurant menus, event programmes, and high-end product brochures.

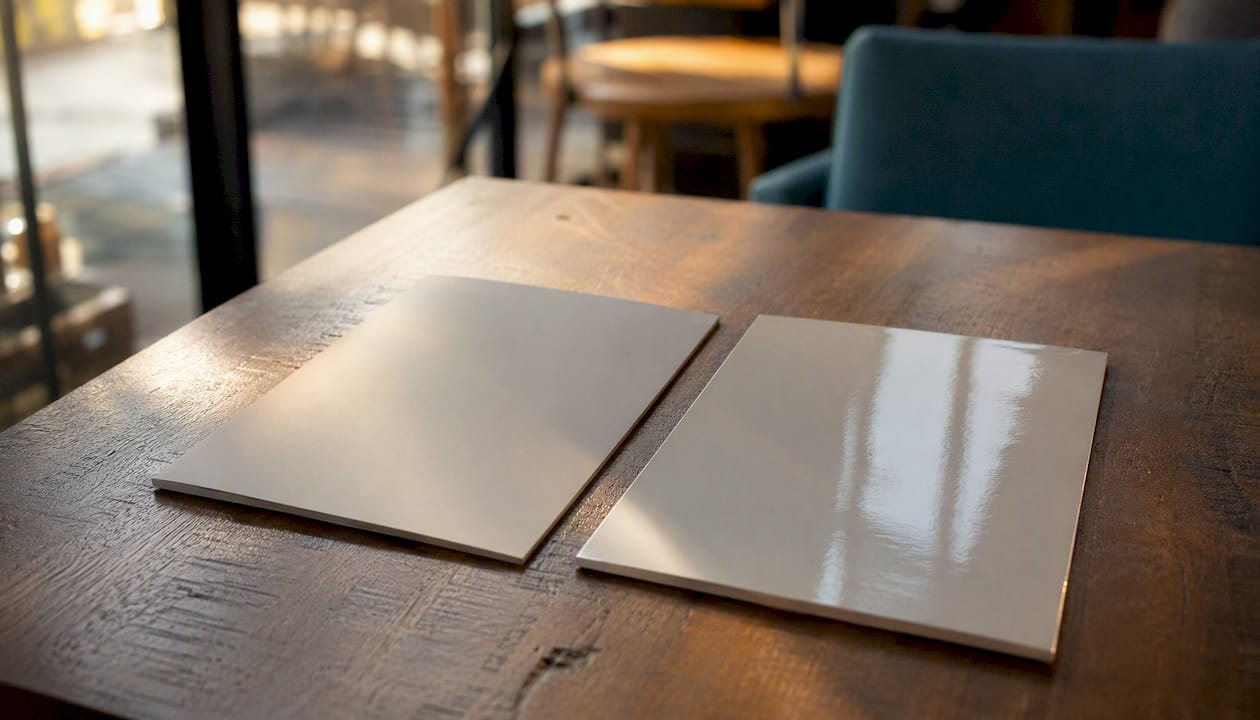

Comparison of gloss and matt laminated brochure covers

300–400gsm: heavyweight card

Business cards, thick postcards, and luxury menu covers sit here. At this weight, folding without scoring is not realistic, and the stock is typically used for single-panel pieces or as a very substantial outer cover.

Pro Tip: If postage or total brochure weight is a concern, ask your printer about high-bulk stocks. A high-bulk 150gsm sheet can feel as thick as a standard 170gsm sheet because of its greater fibre volume, letting you stay in a lower postage band while still achieving a quality tactile impression.

GSM range Best for Folding?
90–120gsm Proofs, economy inserts Yes, easily
130–170gsm Inner pages, leaflets, event handouts Yes
170–200gsm Flyers, self-mailers, light covers With care above 200gsm
200–300gsm Brochure covers, menus, programmes Score first above 200gsm
300–400gsm Postcards, luxury covers, business cards Score always

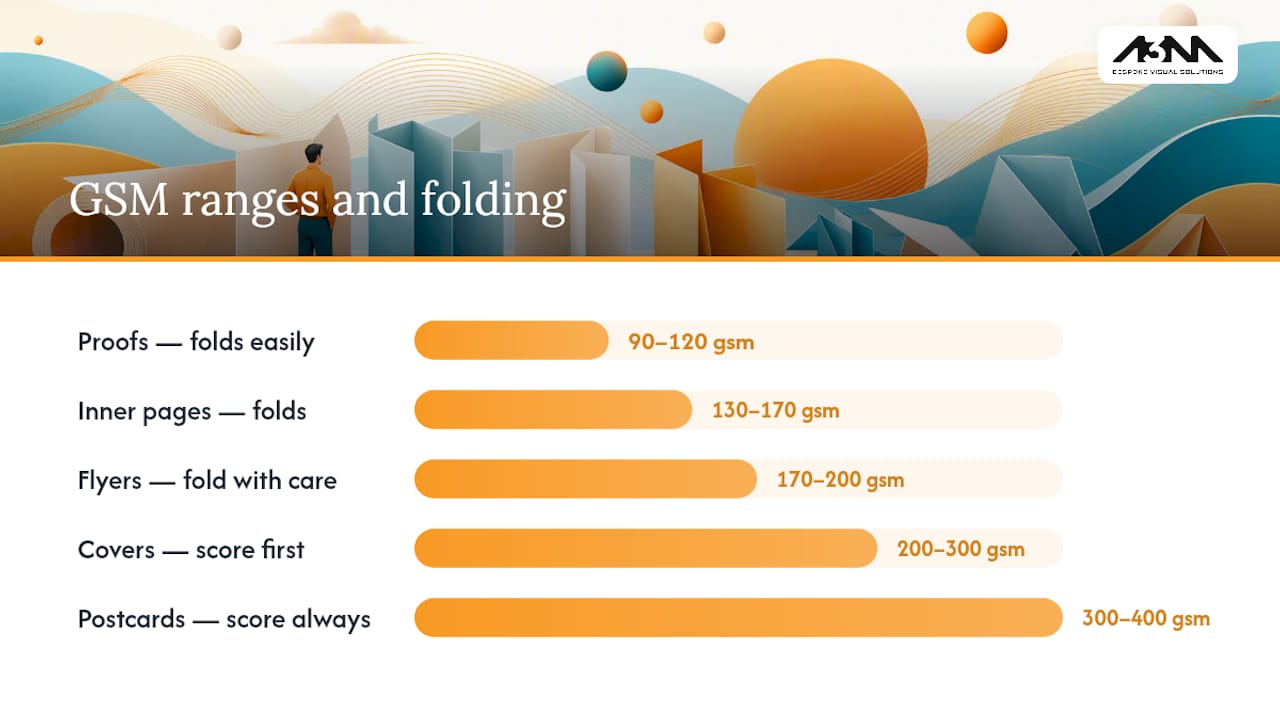

Diagram of brochure GSM ranges with uses and folding advice

How do folding, binding, and finishes affect your stock choice?

Getting the weight right is only half the decision. How the brochure is folded, bound, and finished determines whether your chosen stock will perform well in production.

When scoring is non-negotiable

Heavier stocks above a certain weight are likely to crack at the fold without scoring. Scoring compresses the fibres along the fold line before the sheet is folded, preventing the surface coating or fibres from breaking. If your cover is 250gsm or above, always specify scoring on your print brief. Some printers include it automatically for covers; others charge it as a finishing line item, so confirm this upfront.

Technician scoring heavy brochure cover stock by hand

Finishes and how they interact with GSM

The finish you choose changes how a stock feels, how it prints, and how it folds:

  • Gloss lamination: Adds rigidity and a high-sheen surface. Works well on 250–350gsm covers. Slightly increases the effective thickness.
  • Matt or silk lamination: Softer feel, fingerprint-resistant. Popular for premium brochures. Can be combined with spot UV for contrast.
  • Aqueous varnish: A water-based coating applied inline during printing. Less protective than lamination but adds a subtle sheen and is more environmentally friendly.
  • Spot UV: A raised, glossy coating applied to specific areas. Requires a heavier base stock (typically 300gsm+) to prevent warping.
  • Uncoated stock: Absorbs ink rather than sitting on the surface, giving a natural, tactile feel. Colours appear softer. Well-suited to sustainability-focused brands.

For guidance on choosing between these options, A3m’s article on large format print finishes covers the decision framework in practical terms.

Binding considerations

Saddle-stitched (stapled) booklets work well with inner pages from 90–170gsm. Perfect binding (glued spine) suits heavier inner stocks up to around 170gsm. For very thick covers combined with heavy inner pages, discuss the total spine thickness with your printer before finalising the spec.

Does your print method change which stock you can use?

Yes, and it is worth raising this with your printer before you finalise the spec.

Digital presses are the standard choice for short runs, typically under 500–1,000 copies. They handle most commercial stocks from 90gsm up to around 350gsm, but some speciality textured or heavily coated papers may not be compatible with digital toner or inkjet processes. Speciality stocks may require litho or sheet-fed production, and some have minimum order quantities that make them uneconomical for short runs.

Litho (offset) printing suits longer runs of 1,000 copies and above. It generally produces more consistent colour across a run and gives access to a wider range of specialist stocks, including uncoated recycled papers and textured boards that digital presses struggle with.

Before you confirm your stock, discuss these points with your printer:

  • Run quantity: Under 500 copies, digital is usually more cost-effective. Above 1,000, litho often becomes competitive.
  • Colour profile: Confirm whether the file should be supplied as CMYK or whether the printer uses a specific ICC profile for the press and stock combination.
  • Stock availability: Ask whether your chosen GSM and finish are held in stock or need to be ordered, as bespoke stocks can add lead time.
  • Proof options: Request a printed proof on the actual stock, not just a screen PDF, before approving a long run.

How does paper weight affect cost and postage in the UK?

Heavier stock costs more per sheet and adds weight to every copy, which matters most when you are distributing by post or in bulk.

Royal Mail’s pricing for large letters and packets is banded by weight. A standard A4 brochure printed on 150gsm inner pages with a 300gsm cover will typically weigh more than one using 130gsm inner pages, and that difference can push a mailing into a higher postage band when multiplied across thousands of copies. Choosing 130–150gsm for inner pages helps keep postage lower while still delivering a professional result.

Practical ways to manage cost and postage:

  • Use lighter inner pages: Dropping from 170gsm to 150gsm on inner pages reduces weight without a visible quality drop.
  • Specify high-bulk stock: A high-bulk 130gsm sheet can feel as substantial as a standard 150gsm sheet, keeping you in a lower postage band.
  • Trim the size: A slightly smaller trim size reduces both paper cost and postage weight.
  • Consolidate finishing: Lamination adds a small amount of weight. If postage is tight, aqueous varnish is a lighter alternative.

For direct mail campaigns, weigh a dummy copy of the finished brochure before printing the full run. Your printer can usually produce a dummy from the actual stock so you can confirm the postage band before committing.

What to tell your UK printer: a practical spec checklist

A clear brief prevents costly reprints. Here is the information your printer needs, in the order most UK suppliers expect it.

  1. Final trimmed size: State width × height in millimetres (e.g. 210 × 297mm for A4).
  2. Page count: Total number of pages including cover (e.g. 8pp = 4 sheets saddle-stitched).
  3. Inner page stock: GSM, finish, and coating (e.g. 150gsm silk coated).
  4. Cover stock: GSM, finish, and any lamination or varnish (e.g. 300gsm silk, matt laminated).
  5. Scoring requirement: State explicitly if the cover needs scoring before folding.
  6. Binding method: Saddle stitch, perfect bind, or loose leaf.
  7. Colour profile: CMYK, and the ICC profile if the printer specifies one.
  8. Run quantity: Total copies required, plus whether you need overs.
  9. Delivery date: Your required in-hands date, not just the print deadline.
  10. Sustainability preference: Request FSC-certified stock if responsible sourcing matters to your brand. FSC provides independent chain-of-custody certification for responsibly sourced paper, and the label should appear on your quote and stock data sheet. For more on building a sustainable print policy, A3m’s corporate sustainability print guidance is a useful reference.

Sample request script you can copy:

Pro Tip: Always ask for a printed paper swatch with your chosen finish before approving the job. Colour rendering on a 150gsm silk coated sheet looks noticeably different from the same artwork on an uncoated stock, and a physical sample removes the guesswork.

Why material specification is the detail most brochures get wrong

There is a tendency to treat paper weight as a secondary decision, something to confirm after the design is signed off. In practice, the stock choice shapes how the finished piece feels before a single word is read. A brochure printed on 130gsm uncoated stock and one on 170gsm silk coated carry the same information but communicate very different things about the brand behind them.

The specification also has downstream consequences that are easy to underestimate. A cover stock chosen without confirming scoring requirements can crack in finishing. A GSM selected without checking Royal Mail weight bands can push a direct mail campaign into a higher postage tier. These are not edge cases; they are the kinds of production problems that surface regularly when the brief is vague.

At A3m, we see the impact of precise material specification on brand perception every time a client holds a finished proof against an earlier version. The difference is immediate and tangible. Getting the GSM right, matching it to the right finish, and confirming the folding and binding requirements before production starts is not a technical nicety. It is what separates a brochure that represents your brand well from one that simply delivers information.

How A3m can help you specify and produce your brochures

Specifying a brochure correctly takes time, and the variables add up quickly: GSM, finish, scoring, binding, run length, postage weight, and sustainability requirements all interact. A3m’s in-house production team handles the full process, from stock selection and printed proofs through to scoring, lamination, and delivery across the UK.

A3m

We work with marketing managers, operations leads, and procurement teams to get the specification right before a single sheet goes to press. Whether you need a short digital run of 250 copies or a litho run of 10,000, we can advise on the most cost-effective stock for your format, confirm scoring and finishing requirements, and supply FSC-certified options where sustainability is a priority. Get in touch with the A3m team to discuss your brochure project, or explore our print manufacturing capabilities to see how we work.

Sources

These references are worth bookmarking if you need to verify specs or check certification:

by Chris@a3m.co.uk

Conference room with branded layout elements

Conference room branding explained for office managers

Conference room branding is the deliberate use of physical and digital identity elements — colour, signage, finishes, and branded digital surfaces — to reinforce company values and support better meeting outcomes. If you are starting from scratch, three actions will give you the fastest return:

  • Audit your spaces first. Walk every meeting room and note what is inconsistent: mismatched furniture, blank screens, no room identification. This audit becomes your brief.
  • Pick one or two signature brand cues. A consistent colour accent on the end wall and a branded welcome screen on the display are enough to create recognition without overwhelming the space.
  • Standardise your AV splash screens. Push a branded idle screen and a standard meeting theme across all rooms via centralised device management. Microsoft Teams Rooms supports this natively, and A3m can supply the printed and digital assets to match.

These three steps alone will noticeably improve first impressions before any major procurement begins.

Key takeaways

A well-executed conference room branding programme requires a structured audit, a clear brief with one sign-off owner, a pilot room before full roll-out, centralised AV management, and UK compliance checks completed before procurement begins.

Point Details
Start with an audit Walk every room and record dimensions, fixings, lease restrictions, and AV hardware before writing a brief.
Pilot before roll-out Brand one room completely, test with real users, and adjust the brief before committing to full production.
Centralise AV branding Use Intune or equivalent to push branded screens and meeting themes; centralisation reduces support tickets and meeting delays.
Check UK compliance early Confirm Equality Act contrast requirements, fire-rating certifications, and landlord consent before ordering materials.
A3m for production A3m supplies signage, large-format print, digital displays, and sustainable options with in-house manufacturing for multi-room roll-outs.

Table of Contents

What conference room branding actually means and why it matters

Conference room branding is the practice of applying your organisation’s visual identity to meeting spaces through both physical materials (wall graphics, signage, furniture finishes, lighting) and digital surfaces (branded idle screens, meeting themes, splash screens). It is not decoration. The goal is to make every room feel like it belongs to your organisation, whether a visitor walks in for the first time or a remote colleague joins a video call.

The measurable outcomes are practical:

  • Faster meeting starts. Rooms that are clearly identified and consistently set up reduce the time spent locating the right space and troubleshooting unfamiliar AV.
  • Stronger client impressions. Branded office interiors use layout, materials and finishes to express company values and can directly influence client confidence and recruitment perception.
  • Easier room recognition. Named and visually distinct rooms reduce booking confusion, particularly in multi-floor or multi-site offices.
  • Consistent culture signal. Employees working across sites experience the same visual environment, which reinforces shared values.

For hybrid teams, branding extends to the virtual experience. A remote participant joining a Teams call sees the branded meeting background and splash screen; the physical room and the digital room should feel like the same place. Achieving this requires facilities, IT, and marketing to agree on a shared brief before any production begins. Brand consistency across touchpoints is what turns individual design choices into a coherent identity programme.

The layout itself is part of the brand signal too. A central table with surrounding chairs suits executive and strategic discussions; a more open arrangement signals collaboration. Define the room’s primary function before you fix the furniture, because the layout shapes every other decision.

The core elements that make a conference room feel on-brand

Getting the elements right means understanding what each one contributes. Good AV, clear signage, and considered décor all work together to make a room more usable and more memorable.

Colour palette and accent usage
Use your primary brand colour as an accent, not a full-wall statement. An end wall in your brand’s signature colour, or a coloured panel behind the display, is enough. Overusing colour reads as heavy-handed and can make the room feel smaller. The psychology of colour choices matters here: cooler tones tend to support focus, warmer tones encourage conversation.

Logo placement
The logo belongs in one or two places per room: typically the end wall behind the presenter position and the welcome screen. Keep it proportional. A logo that is too large competes with the content on the display; too small and it disappears. Maintain clear space around it and check contrast against the background.

Furniture and finishes
Furniture communicates quality before anyone sits down. Ergonomic furniture improves both productivity and wellbeing, and the finish of the table and chairs should align with your brand’s register: a technology firm might choose clean white laminates and mesh chairs; a professional services firm might prefer timber veneers and upholstered seating.

Lighting and acoustics
These are brand experience elements, not just technical specifications. Harsh overhead lighting undermines a premium feel regardless of how good the wall graphics are. Acoustic panels can be fabric-wrapped in brand colours, serving a functional and aesthetic purpose simultaneously.

Fabric acoustic panels in branded colours

Signage and wayfinding
Room identification signs, directional arrows, and floor-level wayfinding should use the same typeface, colour, and finish language as the rest of the office. Consistency here is what makes a multi-room roll-out feel intentional rather than piecemeal. A corporate identity print system is the most reliable way to keep printed assets consistent across sites.

Digital surfaces
Branded idle screens, meeting themes, and splash screens extend the identity into the digital layer. Microsoft Teams Rooms supports custom logos, images, and brand colours, with up to five themes per policy available to Teams Premium tenants.

Accessibility
Text contrast ratios on signage should meet WCAG 2.1 AA as a minimum. Tactile signs at door height support users with visual impairments, and this is good practice under the Equality Act 2010 regardless of building type.

How to implement conference room branding step by step

A structured process prevents the two most common problems: scope creep and last-minute supplier changes. Work through these stages in order.

  1. Initial audit and stakeholder sign-off. Walk every room. Record dimensions, existing fixings, AV hardware, lease restrictions, and current signage. Interview facilities, IT, and marketing to agree on objectives and a single sign-off person. Without one decision-maker, approvals stall.
  2. Write the design brief. Document brand rules (approved colours, typefaces, logo versions), permitted variations, digital asset requirements (resolution, dark/light versions), and accessibility requirements. Include any landlord restrictions on drilled fixings or permanent installations.
  3. Supplier selection. Issue the brief to shortlisted suppliers. Request design mock-ups, material samples, and a site survey. Evaluate on colour-matching capability, fire-rating compliance, installation method, and aftercare terms.
  4. Pilot room. Brand one room completely before committing to a full roll-out. Test the AV splash screen, check signage legibility at distance, and get feedback from regular users. Adjust the brief before production scales.
  5. Full roll-out production and installation. Produce all assets against the approved pilot specification. Schedule installation to minimise room downtime, and commission AV settings centrally.
  6. Handover and maintenance. Deliver digital asset files, user guides for AV and meeting themes, and a maintenance schedule. Agree replacement lead times for consumable elements such as vinyl graphics.

Approximate timeline and cost bands

Stage Typical duration Basic Mid-range Premium
Audit and brief 1–2 weeks In-house Facilitated workshop Full consultancy
Design and samples 2–3 weeks Brand templates only Bespoke design + samples Full design system
Pilot room 1–2 weeks Vinyl + screen image Vinyl + acrylic signs + AV Full fit-out + AV integration
Full roll-out 4–8 weeks Self-install graphics Managed installation Turnkey with aftercare

Implementation stages and budgets infographic

Cost bands vary significantly by room count, materials, and whether installation is included. A single-room pilot with vinyl graphics and a branded screen image sits at the lower end; a multi-site roll-out with routed acrylic signage, fabric acoustic panels, and centralised AV management sits at the premium end. Get itemised quotes against your brief rather than day-rate estimates.

UK-specific accessibility, safety and sustainability checks

These are not optional extras. They are the checks that protect you legally and commercially.

  • Accessibility under the Equality Act 2010. Signage must be legible for users with visual impairments. Use high-contrast text (minimum 4.5:1 contrast ratio for normal text under WCAG 2.1 AA), tactile lettering on door signs, and ensure step-free routes to all meeting rooms are clearly marked. Reasonable adjustments are a legal requirement, not a preference.
  • Fire safety and material ratings. Any material fixed to walls or ceilings in a commercial building must meet the fire performance requirements set out in the Building Regulations Approved Document B. Vinyl graphics, foam substrates, and fabric panels all have different fire ratings. Ask your supplier for the relevant certification before installation.
  • Lease and landlord restrictions. Many UK commercial leases prohibit drilled fixings, permanent adhesives, or structural alterations without landlord consent. Check your lease and obtain written approval before specifying anything that cannot be removed cleanly. Removable vinyl and magnetic panel systems are specifically designed for leased environments.
  • Sustainability and materials. Choose low-VOC inks, recyclable substrates, and FSC-certified boards where possible. The British Standards Institution publishes guidance on sustainable procurement (BS 8555 and related standards) that procurement teams can reference when evaluating suppliers. End-of-life recycling for printed materials is increasingly expected by corporate sustainability teams and worth confirming with your supplier at the brief stage.

How to brand your digital screens and standardise AV across rooms

Consistent digital branding is where many roll-outs fall short, because the physical and digital workstreams are managed separately. Bringing them together is straightforward once you have the right admin process.

Central device management
Use Microsoft Intune or an equivalent mobile device management platform to push branded wallpapers, idle screens, and standard AV settings to all room devices simultaneously. A UK AV integrator reported after a 2025 multi-site deployment that centralised customisation of Teams Rooms reduced both meeting start delays and IT support tickets across the estate.

Digital asset specifications
Prepare assets in the correct resolution for each screen type (typically 1920×1080 for standard displays, 3840×2160 for 4K). Microsoft’s meeting themes documentation sets out the exact upload specifications, policy limits, and platform visibility notes for Teams Premium tenants.

Meeting themes and branded reactions
Teams meeting themes allow you to set a branded background, logo, and colour scheme that participants see when they join. Be aware of platform limits: themes display on the desktop client but may not render on all mobile devices or third-party hardware. Test on the devices your attendees actually use before rolling out.

  • Assign themes via Teams admin centre policies.

  • Up to five themes per policy are supported for Teams Premium tenants.

  • Branded reactions and custom backgrounds extend the identity into the meeting itself.

Centralisation benefits
Fewer one-off configurations mean fewer support calls. Rooms that share a standard image and AV profile are faster to reset after a problem and easier to hand over to new staff.

Pro Tip: Standardise the core OS and AV interface across all rooms, but allow one room-level variation per space — a unique piece of artwork, a different accent colour panel, or a modular furniture arrangement. This approach, recommended by conference room standardisation guidance, keeps the estate consistent without making every room feel identical. Pair each room’s AV setup with a QR-linked quick-start guide fixed near the display so users can self-serve without calling IT.

Choosing materials and finishes that suit your budget and building

The substrate you choose determines durability, installation method, sustainability profile, and cost. Here is a practical comparison of the most common options.

Finishes and specialist options
Matt finishes reduce glare on wall graphics near windows. Anti-glare laminates are worth specifying for any graphic positioned opposite a display screen. For premium reception areas or boardrooms, spot foiling and embossing on signage panels add a tactile quality that photographs well and signals investment. A3m offers these specialist finishes in-house, which means shorter lead times and tighter quality control than outsourcing to a third party.

Installation approaches for leased offices
Removable vinyl is the default choice for leased spaces: it leaves no residue and satisfies most landlord requirements. Magnetic panel systems allow graphics to be swapped without any fixings at all, which is useful for rooms that serve multiple functions. Routed acrylic or aluminium signs require drilled fixings and landlord approval, but they last significantly longer and convey a more permanent, premium feel.

Pro Tip: For a multi-site roll-out, specify one substrate system and one finish standard across all locations. Mixing substrates room by room creates visible inconsistency and complicates reordering. A conference centre print production approach — where all assets are produced in a single batch run — reduces unit cost and guarantees colour consistency across the estate.

Design do’s and don’ts, plus room-naming strategies that actually work

Do’s

  • Keep logo scale consistent. Define a maximum and minimum size in your brief and apply it everywhere. A logo that changes size from room to room undermines the system.
  • Use brand accents, not full-wall logos. A single branded colour panel or a logo on the end wall is enough. Covering every surface with the logo reads as insecurity, not confidence.
  • Prioritise legibility. Test signage text at the distance a user will read it from. A room number that is clear at 50cm but illegible from the corridor is a usability failure.
  • Test with real users before roll-out. Show the pilot room to a cross-section of staff, including those with accessibility needs. Their feedback will catch problems the design team missed.

Don’ts

  • Don’t overcrowd with signage. Every sign competes with every other sign. Fewer, clearer signs work better than comprehensive coverage.
  • Don’t use busy backgrounds behind screens. A patterned wall graphic directly behind a display screen creates visual noise during video calls. Keep the area behind the camera clean and neutral.
  • Don’t ignore acoustics. A beautifully branded room with poor acoustics will frustrate every meeting. Hard surfaces reflect sound; fabric panels and upholstered furniture absorb it.
  • Don’t use low-contrast text. Light grey text on a white background fails accessibility checks and is simply hard to read.

Room-naming strategies

Functional names (“Board Room”, “Training Suite”) are clear but generic. Thematic groups work well for larger offices: name rooms after cities where you have offices, values from your brand framework, or figures relevant to your industry. Keep names short (one or two words), memorable, and easy to say aloud. Avoid clever or obscure references that new staff will not understand. Examples that work in practice: “Amber”, “Cedar”, “North”, “Studio 1”, “The Hub”. Examples that cause confusion: “Synergy”, “Nexus”, “The Ideation Space”.

What to ask suppliers before you sign anything

A thorough procurement process protects your budget and your timeline. Work through these questions with every shortlisted supplier.

  1. Service scope. Do you provide design mock-ups and proof approvals before production? Will you conduct a site survey, and is that included in the quote?
  2. Colour matching. What colour-matching process do you use (Pantone, RAL, ICC profile)? Can you provide a physical sample before full production?
  3. Fire ratings. Can you supply fire-performance certification for all materials specified? Which British Standard or EN standard applies?
  4. Installation method. What fixings or adhesives will you use? Are they reversible? Do you carry public liability insurance for on-site work?
  5. Lead times. What is your standard lead time from artwork approval to installation? What happens if a room is unavailable on the agreed installation date?
  6. Warranty and aftercare. What warranty do you offer on materials and installation? How do you handle replacements for damaged or faded graphics?
  7. Handover. Will you supply editable digital asset files, installation guides, and a maintenance schedule at handover?
  8. Sustainability. Can you confirm the recyclability of substrates and the VOC rating of inks used?

Acceptance criteria at handover
Before signing off, check: physical samples match approved proofs; all digital assets are delivered in agreed formats; AV settings are confirmed on all devices; user guides and QR-linked help are in place; and a maintenance schedule with replacement lead times is documented.

When budgets are limited, prioritise client-facing areas first. A branded boardroom or main reception meeting room delivers more visible return than a back-office breakout space.

What office managers usually get wrong, and what actually helps

The projects that go smoothly share one thing: a clear brief written before any supplier is contacted. The ones that run over budget and over time almost always trace the problem back to the same moment — someone approved a supplier quote before the design was finalised, or the lease restrictions were only discovered after samples were ordered.

Lease constraints are the most common surprise. Many UK commercial leases are more restrictive than facilities teams expect, and discovering mid-project that drilled fixings require landlord consent adds weeks to the timeline. Check the lease at the audit stage, not the installation stage.

The second pattern we see regularly is scope creep driven by late stakeholder involvement. Marketing wants the logo repositioned; IT wants a different AV profile; the CEO sees the pilot room and wants the furniture changed. All of this is avoidable if you run a structured stakeholder sign-off at the brief stage and name one person with final approval authority. A single sign-off contact is not bureaucracy; it is the thing that keeps your project on schedule.

What suppliers genuinely wish clients did earlier: share the budget band. Not a precise figure, but a band. “We have roughly £X for a four-room pilot” gives a supplier enough to propose the right materials and installation method from the start, rather than designing to an unknown ceiling and repricing twice.

A3m can handle design, production and installation as one project

Branded conference rooms need physical and digital assets produced to the same specification, installed cleanly, and maintained over time. A3m brings large-format print, custom signage, digital display solutions, and sustainable print options under one roof, with in-house manufacturing that gives you a single point of contact from brief to handover.

A3m

For a conference room roll-out, that means wall graphics, acrylic room signs, wayfinding, fabric acoustic panels, and digital display content produced together, colour-matched, and delivered on a single schedule. No coordinating between a print supplier, a sign-maker, and an AV integrator separately. A3m’s large-format print manufacturing capability means faster turnaround on multi-room projects and tighter quality control than a brokered supply chain. Sustainable substrate options and low-VOC inks are available as standard for clients with environmental commitments. Get in touch with the A3m team to request a site survey, material samples, or a production quote for your project.

Sources

The following references support the guidance in this article and are worth bookmarking for technical templates and admin steps.

by Chris@a3m.co.uk

Folded pop-up exhibition stand frame and fabric cover

What is a pop-up exhibition stand: a practical guide

A pop-up exhibition stand is a portable display built around a collapsible aluminium scissor-lattice frame that “pops” open into a rigid skeleton, onto which printed PVC graphic panels or a dye-sublimated fabric cover are fixed — giving you a large-format branded backwall with no tools and no specialist labour. As a temporary exhibition format, it suits short-term activations far better than permanent or bespoke builds. If you need a professional backdrop quickly, pop-ups are hard to beat. If you need a multi-sided island stand with integrated AV, they are the wrong starting point.

Quick suitability at a glance:

  • Trade shows and conferences — a 3×3m pop-up fills a standard shell-scheme backwall and assembles quickly
  • In-store promotions and product launches — lightweight enough for one person to carry and set up without venue support
  • Press events and roadshows — graphics swap out between events, so the same frame serves multiple campaigns

Key takeaways

A pop-up exhibition stand is a portable, tool-free display built on a collapsible aluminium frame — the right choice for most short-term UK exhibitions, and the wrong one for island stands or integrated AV builds.

Point Details
Core definition A collapsible aluminium frame with printed PVC panels or a fabric wrap; assembles tool-free in 5–15 minutes.
Choose fabric or panels Fabric suits photographic artwork with no seams; panels suit frequent exhibitors who need single-panel repairs.
Size to your space Standard UK shell-scheme backwalls use 3×3 or 4×3 frames; always measure finished width including frame feet.
Buy vs hire Buying pays off after several uses; hiring suits one-off or test events with faster turnaround.
A3m for bespoke needs A3m’s in-house manufacturing covers pop-up graphics, replacement panels, and full bespoke modular builds for UK events.

Table of Contents

What exactly is a pop-up exhibition stand?

The term “pop-up stand” covers a specific product category: a printed backwall display built around a foldable metal frame that pops open into a skeleton for fixing graphic panels or a fabric cover. That distinguishes it from a roller banner (a single retractable graphic in a cassette base), a modular shell-scheme solution (a bolted aluminium grid system), or a fully bespoke built stand (a custom-carpented structure requiring an install team).

In practical terms, the difference comes down to three things: visual area, portability, and set-up time. A roller banner gives you roughly 0.85m of width; a pop-up stand gives you 3m or more. A bespoke stand can fill an entire exhibition hall corner but needs a van, a crew, and several hours. A pop-up sits in a wheeled carry case, fits in a car boot, and is ready in minutes.

Pop-up stands appear throughout the UK events calendar. You will find them at NEC Birmingham trade shows, regional business exhibitions, hotel conference suites, and retail activations alike. Their combination of visual impact and low logistical overhead makes them one of the most widely used display formats for marketing teams working across multiple venues.

What are the main parts of a pop-up stand?

Understanding the components helps you ask the right questions when speaking with suppliers and compare quotes accurately.

Core components:

  • Collapsible frame — typically an aluminium scissor-lattice (also called a concertina frame), which expands from a flat-packed state into a curved or straight backwall skeleton
  • Graphic panels or fabric cover — either rigid printed PVC panels (or foamex inserts) that clip or slot onto the frame, or a single dye-sublimated fabric wrap that pulls over the frame like a pillowcase
  • Fixings — magnetic trims, Velcro strips, or panel clips depending on the system; magnetic fixings give the cleanest finish and fastest swap
  • Base feet — weighted or rubber-footed stabilisers that keep the frame upright on hard floors
  • Transit case — a wheeled padded case (often doubling as a counter or podium) that protects the frame and graphics between events

Material and finish options vary more than most buyers expect. PVC panels typically come in matt or satin laminate; matt reduces glare under exhibition lighting, while satin gives slightly richer colour. Fabric wraps use dye-sublimation printing, which produces photographic-quality gradients with no visible seams. Both substrates are available with front-print only or double-sided print for stands visible from both directions.

Frame warranties differ between suppliers. Many advertise a lifetime frame guarantee on the aluminium scissor-lattice, which reflects how durable the mechanism is under normal use. Graphics, by contrast, are consumables and are not covered by frame warranties. Checking what is and is not included in any guarantee is worth doing before you sign off an order.

What types of pop-up stand are available?

Two main systems dominate the UK market, and the choice between them affects print quality, weight, and how the stand looks at close range.

Panel-based pop-ups use rigid printed PVC or laminated panels that slot or clip onto the frame. They are durable, easy to spot-repair (a single damaged panel can be reprinted and replaced without redoing the whole graphic), and hold up well to repeated assembly. The trade-off is visible seam lines between panels, which can interrupt photographic imagery.

Attaching PVC panel to pop-up stand frame

Fabric pop-ups use a single dye-sublimated wrap that stretches over the entire frame. The result is a seamless, photographic finish with no panel joins. They are lighter than panel systems and pack smaller, but the entire graphic needs reprinting if one area is damaged.

Fabric wrap being stretched over pop-up stand frame

Hybrid systems combine a fabric wrap with a rigid frame and magnetic trims, giving the visual quality of fabric with slightly more structural rigidity.

Straight vs curved:

  • Straight pop-ups sit flush against a wall and maximise graphic area
  • Curved pop-ups bow gently forward, creating a more three-dimensional presence on the show floor
  • Linked runs join two or more pop-up frames side by side to create wider backwalls or L-shaped layouts for corner plots

Pros and cons at a glance:

Panel-based Fabric
Seam visibility Visible between panels Seamless
Repairability Single panel replacement Full graphic reprint
Weight Heavier Lighter
Print quality Excellent for flat graphics Best for photography

Pro Tip: Choose fabric when your artwork contains full-bleed photography or gradient backgrounds. Choose panels when you exhibit frequently and want the option to repair or update one section without reprinting everything.

What sizes and shapes do pop-up stands come in?

UK exhibition spaces are typically booked in shell-scheme units of 3m width, so pop-up stand sizes are designed around those increments.

Common sizes:

Size label Finished width (approx.) Typical use
3×3 (9 panels) around 3m Standard single shell-scheme backwall
4×3 about 4m Wider single space or double unit
5×3 nearly 5m Large backwall or linked run
Single backdrop 1.5m or more Press events, photo backdrops

Sizes refer to the number of panel columns × rows, and finished widths include the frame feet. Supplier guidance consistently warns that curvature on curved frames adds a few centimetres to the depth footprint, which matters in tight spaces.

Measurement checklist before you order:

  • Measure the finished width of your booked space, not just the nominal shell-scheme size
  • Allow 300–500mm depth behind the stand for the frame feet and any cable runs
  • If adding a counter in front, allow at least 800mm of staff working space between counter and backwall
  • For curved frames, check the maximum depth projection against any venue aisle restrictions
  • Confirm ceiling height if you plan to add clamp lights above the frame

L-shaped and linked configurations suit corner plots well. Two 3×3 frames joined at 90 degrees create an L-shape that wraps around a corner pitch, giving you branded coverage on two sides without moving to a bespoke build.

How do you assemble and pack down a pop-up stand?

Most pop-up stands assemble tool-free in just a few minutes for a single person, and faster with two. That speed is one of the strongest practical arguments for the format.

Assembly steps:

  1. Open the transit case and lay the folded frame flat on the floor
  2. Expand the scissor-lattice frame by pulling the top section upward until it locks open
  3. Stand the frame upright and spread the base feet to their full width
  4. Attach graphic panels from the top row downward (panel systems), or pull the fabric wrap over the frame from top to bottom (fabric systems)
  5. Clip magnetic trims or edge rails into place to secure panel edges
  6. Attach clamp lights to the top of the frame if included, and route cables down the back of the frame
  7. Position the counter or podium in front and connect any electrics

Pack-down reverses the steps: remove lights and cables first, detach graphics carefully, compress the frame back to its folded state, and store graphics flat or rolled (never folded) inside the case.

Safety note: always check that the base feet are fully extended before attaching graphics. A partially extended frame can tip forward under the weight of panels. Do not over-tighten magnetic trims — they are designed to release under pressure, which protects both the graphics and the frame.

Pro Tip: Before leaving the supplier or print shop, check that all panels are in the correct order and orientation, that the graphic proof matches your approved artwork, and that the frame opens and closes smoothly. Discovering a misprinted panel on the morning of an event is avoidable.

How do you care for and replace pop-up graphics?

Graphics are the consumable part of any pop-up stand. The frame may last years; the graphics will need refreshing eventually.

Care basics:

  • Clean PVC panels with a damp cloth and mild detergent; avoid abrasive cloths that scratch the laminate
  • Store fabric wraps loosely folded or rolled, never compressed under weight, to prevent permanent creasing
  • Keep the transit case in a dry, temperature-stable environment; prolonged damp causes delamination on PVC panels
  • Avoid direct sunlight during storage, which fades printed colours over time

Replacing graphics is straightforward. You supply the supplier with your print-ready artwork files (typically PDF or high-resolution TIFF at the correct bleed and panel dimensions), approve a digital or physical proof, and receive new panels or a new fabric wrap. Most UK suppliers can turn around replacement graphics in 3–10 working days for standard finishes.

Expected lifespan under normal use is a few years for PVC panels with regular care, and somewhat shorter for fabric wraps used at high-frequency events where the cover is repeatedly stretched and compressed.

Pro Tip: If you exhibit multiple times a year, order a spare set of panels when you place your original print order. The unit cost is lower when printed in the same run, and having spares on hand means a damaged panel never cancels your event day.

What accessories should you consider?

The right accessories can turn a basic backwall into a complete branded environment. Budget for them from the start rather than adding them as afterthoughts.

Common accessories:

  • Clamp lights or LED light bars — mount to the top of the frame and wash the graphic evenly; illuminated displays significantly increase visibility in busy exhibition halls
  • Podiums and counters — often sold as part of the transit case system; provide a staffed interaction point and storage underneath
  • TV mounts and monitor brackets — some frames accept integrated monitor arms for product demos or looping video
  • Shelving units — clip-on shelves for product display; check weight limits before loading
  • Linking kits — join two frames side by side for wider backwalls or L-shaped layouts
  • Wheeled transit cases — standard with most systems; confirm the case dimensions fit in your vehicle before ordering

For a single-person demo stand, a counter-height case and two clamp lights are usually sufficient. A staffed stand with product samples benefits from shelving and a separate podium. If you plan to run a screen, confirm with the venue whether you need a separate power supply or whether the shell-scheme package includes a socket.

Cable management matters more than most buyers anticipate. Trailing cables across a stand floor are a trip hazard and a venue compliance issue. Frames with integrated cable channels keep electrics tidy and reduce rigging time.

What does a pop-up stand cost in the UK, and how long does it take?

Prices vary with size, material, finish, and whether you are buying or hiring. As a broad guide, a standard 3×3 panel-based pop-up bought outright typically costs from a few hundred pounds up to around £1,000 to £1,500 for the complete package including graphics and case, while larger or fabric systems sit higher. Hiring for a single event costs considerably less upfront but adds up quickly if you exhibit regularly.

Buying vs hiring:

  • Buying suits teams that exhibit three or more times a year; the per-event cost drops sharply after the second or third use, and you control the graphics and storage
  • Hiring suits one-off events or organisations testing a new exhibition format before committing to a purchase; turnaround from hire companies can be faster for urgent bookings

Lead times for standard print and delivery run 3–10 working days with most UK suppliers for straightforward panel or fabric graphics. Urgent print options exist but carry a premium. Bespoke builds, special finishes (foiling, embossing, backlit graphics), or site installation all need longer lead times — typically 2–4 weeks minimum, sometimes more for complex projects.

Factors that push costs up:

  • Special laminate finishes (gloss, anti-glare, textured)
  • Double-sided printing
  • Integrated lighting rigs or electrical work
  • Delivery and on-site installation by a crew
  • Short turnaround or rush print fees

How do you choose the right pop-up stand and supplier?

Pick by event type, frequency, transport method, and visual objective — in that order. Everything else follows from those four factors.

Decision checklist:

  1. Event type — shell-scheme backwall, open-space activation, or corner plot? Each has different size and shape requirements
  2. Budget — total cost of ownership (frame + graphics + accessories + storage) versus hire cost per event
  3. Artwork quality — photographic imagery needs fabric; flat graphic design works well on panels
  4. Transport and storage — how will the stand travel? Car boot, courier, or van? Check case dimensions and weight
  5. Staff numbers — a solo exhibitor needs a lighter, faster system than a team of four

Questions to ask any supplier:

  • Do you print in-house, or do you outsource print production?
  • What is your proofing process, and do you offer a physical proof before full production?
  • What is your standard turnaround, and what is the lead time for replacement graphics?
  • What does the frame warranty cover, and for how long?
  • What is the cost of replacement panels or a new fabric wrap?
  • Do you offer delivery and on-site installation if needed?

Checking supplier reputation through independently moderated review platforms adds a useful layer of assurance. Trustpilot’s review system publishes both positive and negative feedback, making it a reliable starting point for gauging real customer experience.

Red flags to watch for:

  • No digital or physical proof offered before production
  • Vague or absent lead-time commitments
  • No frame warranty or guarantee documentation
  • Unclear returns or replacement policy for damaged graphics

Good exhibition graphics are central to the whole investment. A supplier who cannot demonstrate their print quality or proofing process before you commit is a risk not worth taking.

When should you choose a bespoke or modular stand instead?

Choose bespoke when your brief needs custom geometry, integrated AV, or multi-event brand consistency that a standard pop-up cannot deliver. Pop-ups are excellent within their category, but they have real limits.

Situations where bespoke wins:

  • Island stands — a pop-up is a backwall product; it cannot create a four-sided freestanding structure with internal meeting spaces or product plinths
  • Multi-location rollouts — when the same brand environment needs to be installed across ten venues simultaneously, modular systems with standardised components and an install team are far more reliable than pop-ups managed by individual site staff
  • Integrated AV and interactives — screens, lighting rigs, and interactive product demos require structural engineering that a scissor-lattice frame cannot support
  • High-footfall events — at major trade shows where your stand competes with bespoke builds from well-funded competitors, a pop-up backwall can look underpowered

A3m’s bespoke exhibition stand service covers in-house manufacturing, modular system design, and full installation for UK events — which means the same team that prints your graphics can also design the structure, manage delivery, and install on site. That end-to-end capability removes the coordination risk that comes with using separate suppliers for design, print, and build.

For wider brand activation beyond the stand itself, pairing your exhibition presence with a considered influencer marketing strategy can extend reach well beyond the show floor.

The thing most exhibitors get wrong about pop-up stands

The conventional advice on pop-up stands focuses almost entirely on the hardware: frame type, panel count, carry case weight. That is useful, but it misses the decision that actually determines whether the investment pays off — the artwork.

A pop-up stand is, at its core, a large-format print product. The frame is a commodity; the graphic is what visitors see from 10 metres away and decide in seconds whether to approach, yet most buyers spend the majority of their budget on the hardware and treat the artwork as an afterthought. They hand over a logo, a strapline, and a product shot, expecting the supplier to make it work. The result is a stand that is technically correct and visually forgettable.

The stands that actually generate conversations at trade shows share one characteristic: a single, bold visual that is readable at distance and unambiguous in its message. Not a list of services. Not a wall of text. One image, one headline, one reason to walk over. Trade show banners follow the same principle — clarity at distance beats information density every time.

The second thing buyers underestimate is replacement cost. A pop-up frame bought once can serve a brand for years, but only if the graphics are refreshed to stay current. Budgeting for one set of graphics and assuming they will last indefinitely is the fastest way to end up exhibiting with outdated messaging. Build replacement graphics into your annual events budget from day one.

Ready to get your pop-up stand sorted?

A3m supplies pop-up graphics, replacement panels, and fabric wraps with in-house print production and proofing — so you know exactly what you are getting before it goes to press. For teams that need more than a backwall, A3m’s bespoke exhibition stand service covers modular builds and full installation across the UK.

A3m

Before getting in touch, have these ready: your stand size (3×3, 4×3, or custom), print-ready artwork files or a brief, your event date, and whether you want to buy or hire. That information lets us turn a quote around quickly. Find out more about A3m’s large format print capabilities or get in touch directly to discuss your next event.

Sources

by Chris@a3m.co.uk

Installer mounting wayfinding sign indoors

Wayfinding signage design: a practical UK guide

Wayfinding signage design is the disciplined practice of organising information, graphics and physical placement so that people can orientate themselves and move confidently through a space. The goal is simple: reduce confusion at decision points. The single best first step for any UK project is to conduct a decision-point audit, mapping every moment where a user must choose a direction before a single sign is specified.

Before you brief a designer or production partner, work through this quick checklist:

  • Identify every decision point in the space (entrances, junctions, lifts, stairs, exits).
  • Map the primary user journeys from arrival to each key destination.
  • Note where staff interventions or help-desk queries currently cluster — those are your pain points.
  • Check which statutory requirements apply (fire, traffic, accessibility) before the design stage begins.

Pro Tip: Brief your wayfinding consultant or production partner with a completed decision-point map. It cuts briefing time significantly and prevents costly scope changes mid-project.

Key takeaways

Effective wayfinding signage design requires a decision-point audit before any design work begins, inclusive design built in from briefing, and a maintenance plan agreed before installation.

Point Details
Start with a decision-point audit Map every junction and choice point before specifying a single sign.
Apply a clear information hierarchy Primary destination first, secondary zone or floor, tertiary detail — in that order on every sign.
Build inclusive design in from briefing Retrofitting tactile, contrast and mounting adjustments post-installation costs more and delivers less.
Check statutory requirements early Fire Safety (England) Regulations 2022, Approved Document B and TSRGD apply to many UK projects and must be confirmed at briefing stage.
Test with real users before full production First-time-visitor tests in a pilot area prevent costly rework after the full sign schedule is fabricated.
A3m for UK production and installation A3m handles design verification, in-house fabrication, installation and post-installation maintenance for wayfinding schemes across the UK.

Table of Contents

Core principles that make wayfinding signage systems work

Effective wayfinding signage design rests on a small number of principles that, when applied consistently, make a space feel intuitive rather than confusing. Network Rail’s wayfinding guidance prescribes a consistent information hierarchy across stations, grouping destinations by direction and sizing text to viewing distance. The same logic applies to any public environment, from a hospital campus to a school.

Hierarchy of information is the foundation. Every sign carries primary information (the destination or direction), secondary information (floor or zone identifier) and tertiary information (supplementary detail such as room numbers). Primary information must be the largest, most prominent element. Secondary and tertiary content should be visually subordinate, not competing for attention.

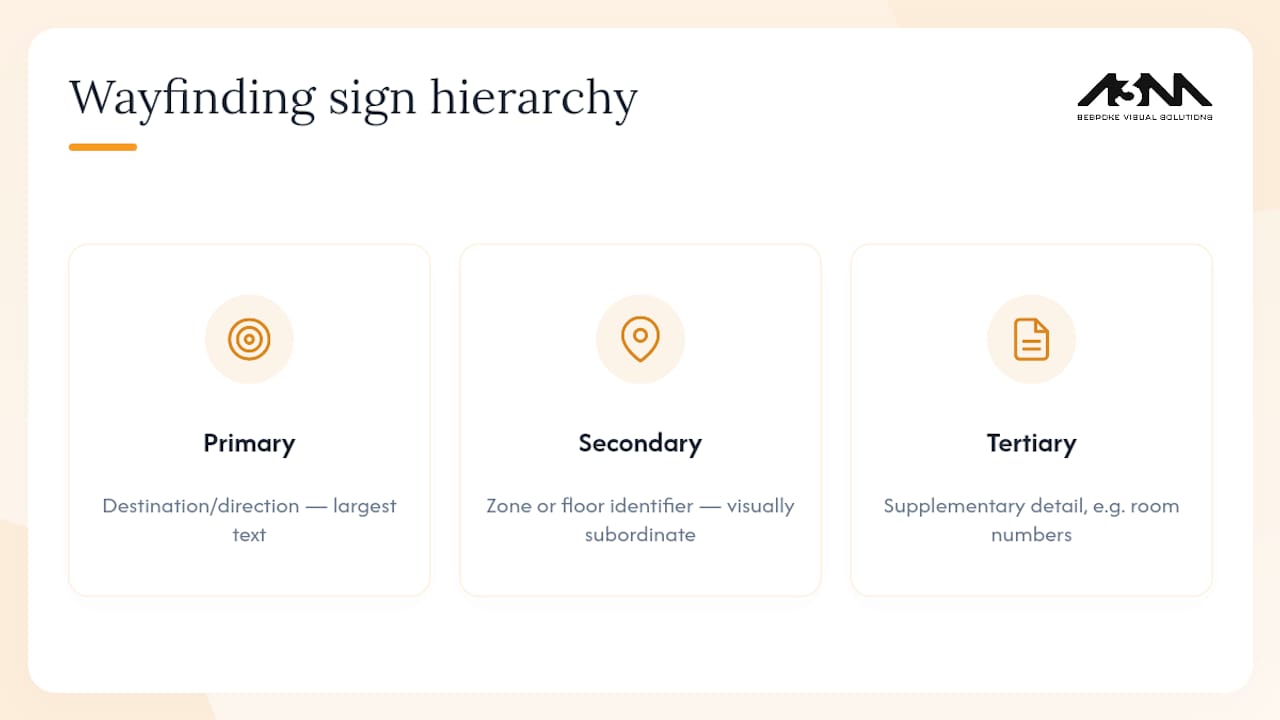

Diagram showing information hierarchy on wayfinding signs

Consistency and predictable placement build user confidence over time. Network Rail’s design manual NR/GN/CIV/300/01 notes that signs mounted perpendicular to the primary flow help users make intuitive decisions at decision points. When signs appear at the same height and position throughout a building or campus, users stop consciously searching for them.

Progressive disclosure is the principle practitioners rely on most. At each decision point, present only the immediate next action and destination. A sign at a main entrance does not need to list every room in the building; it needs to direct users to the correct zone or floor. Overloading a sign with information is one of the most common mistakes in wayfinding projects, and it reliably increases confusion rather than reducing it.

Reduce visual clutter. Group destinations by direction rather than listing them alphabetically. Keep language concise: “Wards A–D” beats “Wards A, B, C and D (Floors 2–5).” Consistent typography and messaging also reduce cognitive load, which Sustrans guidance identifies as a core operational principle that improves first-time success rates.

Pro Tip: Choose a single sans-serif typeface for all wayfinding signs and set a minimum x-height of 15mm for signs read at 5m. Mixing typefaces or using decorative fonts is the fastest way to undermine legibility.

Sign types and the role each plays in a coherent system

A well-designed scheme uses several distinct sign categories, each with a specific job. Mixing their roles, or omitting a category, creates gaps that users fill with guesswork.

  1. Advance directional signs appear before a decision point, giving users time to prepare their route. Typical locations: corridor junctions, lift lobbies, car park entrances.
  2. Junction directional signs sit at the decision point itself, confirming the correct turn. These carry the highest information load and must be the clearest signs in the system.
  3. Confirmatory signs reassure users they are on the correct route after a turn. Often underspecified, they are critical for long corridors and multi-building campuses.
  4. Identification signs name a space: room numbers, floor plates, building names, entrance markers. They answer “Am I here?” rather than “How do I get there?”
  5. Regulatory and safety signs carry statutory forms and colours defined by the Health and Safety (Safety Signs and Signals) Regulations 1996, which specify shapes, minimum pictogram simplicity and prescribed colours for prohibitory (red/white), warning (yellow/black) and emergency (green/white) signs. These cannot be redesigned to match a brand palette.
  6. Maps and orientation totems give users a “you are here” reference. Most useful at main entrances and large junctions; less useful mid-corridor where a directional sign serves better.
  7. Low-level tactile and braille elements support users with visual impairments. Tactile floor indicators, raised lettering and braille panels are typically integrated into identification signs and maps.
  8. Digital signs and kiosks allow real-time updates and personalised routing. QR codes on static signs can link to digital pre-visit maps, bridging printed and digital wayfinding. A3m’s digital signs and display solutions cover dynamic content for kiosks and real-time passenger information where the scheme requires it.

For external directional signage, the Traffic Signs Manual Chapter 7 defines directional informatory sign types, colour coding and panel and type sizing rules. Any public realm or transport-adjacent scheme must reference it.

Accessibility and inclusive design: minimum UK expectations

Inclusive design is not an optional layer added at the end of a project. Retrofitting tactile or audio aids after installation is consistently more expensive and less effective than building accessibility into the information architecture from the briefing stage. The Sign Design Guide+ from the Sign Design Society provides practical guidance covering legibility, symbols, tactile information and delivery steps that every designer should consult.

The minimum expectations for UK public environments cover several dimensions:

  • Contrast: a minimum 70% luminance contrast between text and background. Matt finishes reduce glare for users with low vision. Avoid glossy laminates on signs that will be read under artificial lighting.
  • Type size: large print is defined as a minimum of 16pt (approximately 5.6mm cap height) for close-reading signs such as room name plates. Viewing-distance calculations should govern type size on directional signs.
  • Tactile and braille: raised lettering and braille panels are appropriate on identification signs and maps. Braille alone is insufficient; raised text supports a wider range of users with visual impairments.
  • Mounting heights: the NHS wayfinding guidance recommends mounting heights and matt finishes that reduce glare, and stresses that pre-visit information must link to on-site signage for first-time visitors. Signs mounted too high exclude wheelchair users and people of shorter stature.
  • Audio options: audible information points and talking signs are appropriate in high-traffic public spaces. The Inclusive Mobility guidance from the Department for Transport covers tactile cones at crossings, minimum sign clearances and accessibility features for transport infrastructure.
  • Cognitive accessibility: plain language, consistent iconography and short destination names reduce the cognitive load for users with learning disabilities or dementia.

The NHS guidance makes clear that effective wayfinding requires a strategy, not just signs. Pre-visit information, site layout and environmental cues must all work together. For school wayfinding signage in the UK, the same principles apply: school wayfinding design must account for a wide range of users, from young children to visitors unfamiliar with the site, and should integrate with printed and digital pre-visit communications.

Pro Tip: Commission an access audit from an RNIB-affiliated consultant before finalising your sign schedule. It typically costs less than one round of remedial works post-installation.

Key UK regulations and standards every designer must reference

UK wayfinding projects sit within a framework of statutory requirements and authoritative guidance. Some documents are legally binding; others are best practice that courts and inspectors treat as the benchmark. Knowing which is which protects your client and your project.

  • Traffic Signs Regulations and General Directions (TSRGD) and Traffic Signs Manual: statutory for highway and public realm signage. Chapter 7 covers directional informatory signs. Use during design and at local authority sign-off.
  • Approved Document B (Volume 1, 2019 edition with May 2020 amendments): requires floor identification and flat indicator signs in specified formats for buildings over the defined height, including letter heights and consistent mounting positions between 1.7m and 2.0m. Reference during RIBA Stage 2 and at building control sign-off.
  • Fire Safety (England) Regulations 2022, Regulation 8: from 23 January 2023, these Regulations require clear floor and flat identification signage in high-rise residential buildings to assist fire services. Mandatory for all qualifying buildings; check at briefing stage for residential projects.
  • Health and Safety (Safety Signs and Signals) Regulations 1996: statutory for all safety signage in workplaces and public buildings. Defines colours, shapes and pictogram requirements. Use when specifying fire, hazard and emergency signs.
  • NHS wayfinding guidance (supersedes HTM 65): best practice for healthcare environments. Covers strategy, pre-visit information, sign types and evaluation. Use throughout design and at NHS trust sign-off.
  • Network Rail wayfinding guidance: best practice for transport environments, widely adopted in public realm projects. Use for decision-point analysis and information hierarchy.
  • Sign Design Society Sign Design Guide+: best practice for inclusive design. Use during briefing and user testing stages.

A practical tip: create a compliance matrix at the start of every project. List each applicable document, the specific clauses relevant to your scheme and the sign-off authority who will check compliance. It prevents late-stage surprises and gives your client a clear audit trail.

A practical design process: audit to delivery

A structured process prevents the most common wayfinding failures: signs specified without user testing, hierarchies that made sense on paper but not on site, and maintenance plans that never materialised. The five stages below reflect how well-run UK schemes are delivered.

  1. Decision-point audit and user journey mapping. Walk every primary user journey. Record decision points, current signage, lighting conditions and sightlines. Deliverables: annotated floor plans, a decision-point register and a prioritised list of problem areas. Tools: site photography, CAD overlays, stakeholder interviews.

  2. Strategy and information hierarchy. Define naming conventions, zoning logic and the grouping of destinations by direction. This stage produces the information architecture: a master list of every sign, its content, location and sign type. Stakeholder sign-off at this stage prevents content changes during production.

  3. Visual design and kit-of-parts. Develop the typography system, iconography, colour palette and sign family templates. Every element should be designed as a system, not as individual signs. For school wayfinding design, the visual language must be legible to children and adults alike, with pictograms supporting text for younger or non-English-speaking users. How visual content supports intuitive navigation is well established: consistent imagery builds user confidence faster than text alone.

  4. Prototyping and user testing. Produce physical samples of key sign types and install them in a pilot area. Run first-time-visitor tests: ask participants to complete a timed wayfinding task without assistance. Record decision accuracy, detours and hesitation points. Fold findings back into the sign schedule before full production. Network Rail’s guidance emphasises decision-point analysis and text sizing tied to viewing distances as part of this process.

  5. Production, installation and handover. Issue a complete sign schedule with fixing details, finish specifications and electrical requirements for illuminated signs. Agree an installation programme with access and health and safety clearances. Handover documentation should include an asset register, a maintenance schedule and a content update workflow. For multi-site programmes, a retail rollout signage checklist approach keeps sequencing and quality control consistent across locations.

Typical timeline for a medium-complexity public building scheme: 12–20 weeks from briefing to installation. The main cost drivers are fabrication complexity (illuminated versus non-illuminated), electrical installation, access requirements (scaffolding, cherry pickers) and any statutory permits for external signs.

Pro Tip: Lock the information architecture (Stage 2) before any design work begins. Content changes after visual design has started are the single biggest cause of budget overruns in wayfinding projects.

Placement, legibility and material choices that affect performance

Getting the physical specification right is where many otherwise well-designed schemes fail. A sign with excellent content and typography becomes useless if it is mounted at the wrong height, made from a glossy substrate, or fabricated from a material that degrades within two years outdoors.

Mounting heights and placement:

  • Standard directional signs are typically mounted at heights comfortable for standing users to view.
  • Low-level tactile signs and braille panels should be mounted at heights accessible to wheelchair users.
  • Approved Document B specifies floor identification signs mounted at heights suitable for fire service use in qualifying buildings.
  • Signs should be perpendicular to the primary flow, not parallel to the wall behind them, so they read naturally as users approach.

Type sizing and legibility:

  • A general rule: 1mm of cap height per 1m of viewing distance. A sign read at 10m needs a minimum 10mm cap height; at 20m, 20mm.
  • Sans-serif typefaces (such as Johnston, Helvetica, or Frutiger) consistently outperform serif faces for directional signage legibility.
  • Avoid all-capitals for long destination names; mixed case is faster to read.

Colour contrast and finishes:

  • Minimum 70% luminance contrast between text and background.
  • Matt or satin finishes for all internally lit and externally illuminated signs. Gloss finishes above a 30 gloss unit (GU) reading cause reflective glare under artificial lighting, reducing legibility for users with low vision.
  • For outdoor signs, UV-stable inks and powder-coated or anodised aluminium substrates offer the best longevity in UK weather conditions.

Material choices:

  • Indoor, low-traffic: aluminium composite (Dibond), acrylic, PVC foam board.
  • Indoor, high-traffic or vandal-prone: brushed stainless steel, powder-coated aluminium, toughened glass.
  • Outdoor: marine-grade aluminium, stainless steel, high-pressure laminate (HPL). For outdoor architectural signage, material selection must account for fixing method, substrate thickness and UV resistance.
  • Sustainability: consider recycled aluminium substrates and water-based inks for schemes with environmental commitments.

User testing, performance evaluation and maintenance planning

A wayfinding scheme is not complete at installation. Testing before full rollout and evaluating performance afterwards are what separate schemes that work from those that generate complaints.

Testing methods:

  1. First-time-visitor test: recruit participants with no prior knowledge of the site. Ask them to navigate from a defined start point to three or four destinations. Record time, errors and verbal hesitations.
  2. Shadowing: observe real users navigating the space without intervention. Note where they pause, backtrack or ask for help.
  3. Timed wayfinding tasks: set a target time for each journey based on distance. Compare actual times against the target; significant overruns indicate a sign gap.
  4. Staff intervention logs: count the number of direction-giving interactions at reception or information points before and after installation. A reduction confirms the scheme is working.

Performance metrics to track post-installation:

  • Decision accuracy rate (percentage of users who turn correctly at each decision point).
  • Average journey time versus expected journey time.
  • Number of staff direction-giving interventions per day.
  • Help-desk or complaints log entries related to navigation.

Maintenance checklist:

  • Inspect all signs at least annually, and after any building works or layout changes.
  • Maintain a live asset register: sign ID, location, content, material, installation date and condition rating.
  • Define a content update workflow: who approves changes, who produces replacement panels, and what the turnaround time is.
  • Replace damaged or faded signs within an agreed SLA (typically 5–10 working days for critical directional signs).

Pro Tip: Build the maintenance plan into the project contract, not as an afterthought. Agree inspection frequency, update workflows and replacement lead times before installation begins.

The Sign Design Guide+ covers pilot evaluation and how to fold findings back into final sign schedules, making it a useful reference at this stage.

What to specify for production and installation to avoid delays

Incomplete specifications are the primary cause of delays and rework in wayfinding production. Giving your production partner everything they need upfront means accurate pricing, faster turnaround and fewer surprises on site.

Information required for accurate quotes:

  • A complete sign schedule: sign ID, location, dimensions, content, material, finish and fixing method for every sign.
  • Fixing details: substrate type (plasterboard, masonry, glazing, timber), fixing centres and any structural constraints.
  • Finish tolerances: colour references (RAL, Pantone or brand-specific), gloss level, surface texture.
  • Electrical requirements: voltage, cable routing and control systems for illuminated or digital signs.
  • Any statutory requirements that affect production (AD B letter heights, TSRGD colour specifications).

Site access and installation requirements:

  1. Confirm access windows with the facilities or site manager before scheduling installation.
  2. Identify areas requiring scaffolding, mobile elevated work platforms (MEWPs) or out-of-hours access.
  3. Obtain any necessary permits for external signs (planning permission, listed building consent, highway authority approval).
  4. Ensure all installation operatives hold relevant CSCS cards and that RAMS (Risk Assessment and Method Statements) are submitted and approved before works begin.

QA on delivery:

  • Request digital proofs for all sign content before production begins. Check content, hierarchy, type sizes and colour against the approved sign schedule.
  • Agree colour match samples (physical panels) for key sign types before full production run.
  • Carry out a pre-installation inspection of delivered signs against the schedule.
  • Use a formal installation sign-off sheet: sign ID, location, condition on installation and sign-off signature.

Common pitfalls include missing fixings delivered with signs, incorrect handover documentation and no agreed process for replacing damaged signs post-installation. Address all three in the project contract.

How A3m approaches a wayfinding project from brief to site

A3m works with marketing managers, facilities directors and project teams across the UK to take wayfinding schemes from initial brief through to installed, maintained signage. The process is practical and collaborative, with in-house manufacturing capabilities that give clients direct control over quality, lead times and costs.

A typical A3m wayfinding project follows a clear pipeline:

  • Brief and design verification: A3m reviews the client’s sign schedule and design files, checking for production feasibility, statutory compliance (AD B letter heights, TSRGD colour specifications, fire safety sign formats) and material suitability before any fabrication begins.
  • Sample production: physical samples of key sign types are produced for client approval before the full production run. This is where colour matches, finish tolerances and fixing details are confirmed.
  • In-house fabrication: large format print, cut aluminium, acrylic, brushed steel and composite substrates are all produced in-house, giving A3m control over quality and turnaround. The A3m signage service covers indoor and outdoor fabrication, illuminated signs and bespoke finishes.
  • Installation: A3m’s installation teams work to agreed access windows, with full RAMS documentation and site sign-off on completion.
  • Post-installation maintenance: clients can agree ongoing maintenance and update services, including an asset register, inspection schedule and replacement panel production.

For accessibility and statutory requirements, A3m’s production team checks sign content against the relevant regulations during the design verification stage, flagging any issues before fabrication. This is particularly valuable for residential developers working under the Fire Safety (England) Regulations 2022 and for healthcare or education clients with NHS or DfT accessibility obligations.

Pro Tip: Share your decision-point audit and information architecture with A3m at briefing stage, not just your design files. It allows the production team to flag practical issues (fixing constraints, viewing distance calculations, material suitability) before they become costly changes.

What most wayfinding guides get wrong

The conventional wisdom in wayfinding is that good design solves the problem. It does not. The most common failure mode on UK projects is not poor typography or wrong colours; it is a sign schedule that was never tested with real users before full production, and a maintenance plan that was never written.

The second most common failure is treating accessibility as a compliance checkbox rather than a design constraint. When inclusive design is integrated from the briefing stage, it improves the scheme for every user, not just those with disabilities. A sign that is legible at 10m in low light, mounted at a height accessible to wheelchair users, with a matt finish that eliminates glare, is simply a better sign. The cost of getting this right at briefing is a fraction of the cost of retrofitting it after installation.

For school wayfinding signage in the UK, the stakes are particularly clear. A school site serves children, parents, visitors, contractors and emergency services, often simultaneously. A scheme that works for a confident adult professional will fail a child, a non-English speaker or a first-time visitor in an emergency. The decision-point audit must account for all of them.

The final lesson: a wayfinding scheme is a living system, not a one-time installation. Buildings change, organisations change, and signs that were accurate on day one become misleading within months if there is no update workflow. The maintenance plan is not an optional extra; it is part of the scheme.

A3m can take your wayfinding project from brief to site

A3m offers a complete wayfinding production service for UK clients: from design verification and statutory compliance checks through to in-house fabrication, installation and post-installation maintenance. Whether you are specifying a new hospital wing, a school campus, a retail estate or a public realm scheme, A3m’s team works with your designers and facilities managers to deliver signs that meet UK regulations, pass accessibility requirements and hold up in the real world.

A3m

Our large format print manufacturing capabilities mean we can produce everything from small identification plates to large external totems in-house, with physical samples before full production and a formal installation sign-off process. We also support digital wayfinding integration, including QR-linked content and dynamic kiosk displays. To discuss your project or request a quote, get in touch with the A3m team directly.

Sources

by Chris@a3m.co.uk

Installer mounting large-format tourism signage

Top print solutions for UK tourism attractions: 2026 guide

For UK attractions, the print solutions that deliver the most commercial and experiential value are: large-format wayfinding and directional signage, durable outdoor hoardings and exterior panels, interpretive and exhibition displays, modular exhibition stands, retail and POS print (merchandise, shelf-talkers, hangers), accessible printed materials (large print, braille, BSL-supported formats), and web-to-print portals for multi-site fulfilment. A3m is the recommended project-ready partner for all of these, with in-house large-format manufacturing, sustainable substrate options, and managed fulfilment across the UK.

Quick reference:

  • Lead times: 3–7 working days for short-run collateral; 7–21 working days for large-format panels; 3–8 weeks for modular exhibition stands
  • Typical cost bands: £150–£600 for brochure and leaflet runs; £500–£3,500+ for large-format signage; £3,000–£15,000+ for modular exhibition stands (see the full table in the implementation section)
  • First step: Contact A3m to request a sample pack and site-audit consultation before committing to a full production run

Pro Tip: Before briefing any supplier, photograph every visitor decision point on your site, from the car park entrance to the gift shop exit. That ten-minute walk-through will shape your entire signage brief and prevent costly rework later.

Key takeaways

The most effective print strategy for UK attractions combines accessible, durable large-format signage with sustainable substrates, a web-to-print portal for ongoing fulfilment, and a supplier with in-house manufacturing capability.

Point Details
Print drives real bookings Over half of leaflet recipients are more likely to visit; home-delivered leaflets show a 13% ticket conversion rate.
Accessibility is non-negotiable Offer large print (16–18pt), braille, audio, and easy-read formats; make your Accessibility Guide prominent on your homepage.
Sustainable options exist for outdoor use Recycled ACM, FSC-certified board, PET-recycled foamex, and UV-curable inks all perform outdoors without sacrificing durability.
Plan lead times early Large-format hoarding panels take 10–21 working days; full wayfinding schemes can run to 8 weeks. Budget accordingly.
A3m for attraction print projects A3m offers in-house large-format manufacturing, accessible design, sustainable substrates, and web-to-print portals for UK attractions.

Table of Contents

Why does high-quality print still matter for visitor experience?

Print is not a legacy channel for attractions. Culture Calling’s 2026 research found that receiving a leaflet made many respondents more likely to visit, and home-delivered leaflets produced a notable ticket conversion rate. Those are commercial outcomes that most digital-only campaigns struggle to match at equivalent cost.

The British Printing Industry Federation’s 2025 facts and figures confirm that print serves travel and tourism alongside retail and government as one of its core sectors. The medium carries trust in a way that a social media post rarely does, particularly for first-time visitors deciding whether an attraction is worth the journey.

Visitor reputation matters enormously here. Tripadvisor’s 2026 Travellers’ Choice rankings placed the Royal Yacht Britannia as the world’s top attraction, and TimeOut’s coverage noted that the attraction accumulated roughly 25,000 TripAdvisor reviews with nearly 19,000 perfect scores. Presentation and interpretation quality feed directly into those ratings.

Print and digital are not rivals. Print sparks discovery and builds intent; digital completes the transaction. A well-placed leaflet in a hotel lobby or a striking hoarding at a motorway services drives someone to search, click, and book.

Pro Tip: Add a short, memorable URL or QR code to every printed piece. Keep the landing page specific to that print run so you can track exactly how many bookings each campaign generates.

Why does high-quality print still matter for visitor experience? — overview diagram

What are the top print solutions for tourism attractions?

The IBISWorld 2026 UK printing industry overview covers the full range of products available, from short-run digital brochures to large-format signage and labels. For attractions specifically, the most productive investment categories are below.

Solution type Visitor journey stage Recommended substrate/material Minimum spec Accessibility note
Wayfinding and directional signage Arrival and orientation Aluminium composite (ACM), 3mm 600 × 400mm, anti-glare laminate Minimum 28pt sans-serif, high-contrast, public information symbols
Exterior hoardings and banners Pre-arrival and arrival PVC mesh or blockout, UV inks large-format outdoor panels Large text, pictograms, avoid decorative fonts
Interpretive and exhibition panels Interpretation Foamex, ACM or recycled board A1 minimum, 150 dpi at final size 18pt body text, 4.5:1 contrast ratio
Modular exhibition stands Events and touring exhibits Fabric tension or aluminium frame 2m × 1m minimum bay Tactile labels available; BSL video QR codes
Retail and POS displays Retail and departure Correx, foamex, card Shelf-talker: A5; floor display: A1 Clear pricing, pictograms, legible at arm’s length
Printed maps and brochures Orientation and take-home FSC-certified silk or uncoated A4 folded, 150gsm minimum Large-print version at 16–18pt; easy-read option
Accessible printed materials All stages Uncoated or tactile stock A4 minimum Braille, large print 16–18pt, easy-read layout

For A3m’s signage services, durable finishes include anti-graffiti laminates, R10-rated anti-slip substrates for wet outdoor sites, UV-curable inks for colour stability, and foiling or embossing for premium retail and wayfinding applications.

Web-to-print portals are particularly useful for attractions with multiple sites or seasonal gift shops. A centralised portal lets your team order pre-approved artwork, manage seasonal rollouts, and maintain brand consistency without involving a designer for every reprint.

Pro Tip: For high-touch areas such as ticket desks and interactive exhibits, specify an anti-graffiti overlaminate and build a quarterly inspection into the purchase order. Replacing a single damaged panel costs far more than a maintenance schedule.

How do you make attraction print materials genuinely accessible?

Accessibility is not optional. The VisitBritain guidance for attractions recommends publishing a detailed Accessibility Guide and offering alternative formats including large print (at least 16–18pt), audio, and easy-read versions. Visitors who cannot find clear access information before they arrive often do not come at all.

Practical accessibility checklist for printed materials and signage:

  1. Use a minimum 28pt sans-serif typeface (Arial, Helvetica, or Johnston) on all wayfinding signs.
  2. Maintain a contrast ratio of at least 4.5:1 between text and background on all printed panels.
  3. Avoid decorative, script, or condensed fonts on any visitor-facing material.
  4. Use internationally recognised public information symbols alongside text on directional signs.
  5. Produce a large-print version of every brochure and map at a minimum of 16–18pt body text.
  6. Offer a braille version of your site map and key visitor information.
  7. Provide audio-described recordings of interpretive content, with BSL-subtitled video accessible via QR code.
  8. Include tactile models or raised-relief maps at key orientation points for visitors with visual impairments.
  9. Audit all printed materials annually against this checklist and update before peak season.
  10. Make your Accessibility Guide prominent on your homepage and in the booking flow, not buried in a footer.

Aligning your printed Accessibility Guide with your virtual tour accessibility features ensures that visitors who research your site digitally find consistent information when they arrive in person.

Pro Tip: Place your Accessibility Guide link in the primary navigation of your website, not just on a dedicated accessibility page. Visitors using screen readers or planning tools will find it faster, and VisitBritain specifically recommends this prominence.

Which sustainable print options work for outdoor attraction use?

Sustainable substrates and low-impact inks are available without sacrificing the durability outdoor attraction signage demands. The options below are practical for UK weather conditions and meet growing procurement sustainability requirements.

  • Recycled aluminium composite panels: structurally equivalent to standard ACM, with a recycled aluminium core; suitable for permanent exterior wayfinding.
  • FSC-certified board and paper stocks: for brochures, maps, and interpretive panels; certifies responsible forest management across the supply chain.
  • PET-recycled foamex alternatives: rigid display boards made from post-consumer recycled PET; lighter than standard foamex and recyclable at end of life.
  • Eco-solvent and UV-curable inks: lower VOC emissions than conventional solvent inks; UV-curable inks bond without solvents and offer excellent outdoor colour stability.
  • Vegan and solvent-free laminates: available for brochures and panel overlaminates; reduce chemical load and are compatible with recycling streams.
  • Modular panel systems: designed for reuse across seasons or touring exhibits; replace individual panels rather than the entire structure, reducing waste significantly.
  • Take-back and repair-first schemes: ask your supplier whether they offer panel repair or substrate take-back at end of campaign.

Culture Calling’s research found that 76% of people retain print, which means a well-produced, sustainably printed brochure or map continues working long after a digital ad has scrolled past. Investing in durable, recyclable substrates extends that lifespan further and reduces the frequency of reprints.

How do you choose the right print supplier for your attraction?

Pick a partner with in-house manufacturing, demonstrable experience with attractions, clear accessibility and sustainability credentials, and the fulfilment capability to handle multi-site or seasonal rollouts. The YDNPA signage specification recommends conducting site audits by observing natural visitor behaviour without branded staff present, then planning sign families with clear installation notes and maintenance schedules. That approach applies equally when briefing a commercial print supplier.

Capability questions to ask any supplier:

  1. Do you manufacture in-house, or do you outsource production?
  2. What are your standard lead times for large-format panels and modular stands?
  3. Can you provide sample panels for substrate and finish approval before full production?
  4. Do you offer on-site installation and a post-installation maintenance plan?
  5. What sustainability certifications or reporting can you provide (FSC, ISO 14001)?
  6. Have you delivered projects for visitor attractions or heritage sites? Can you share case studies?
  7. Do you offer a web-to-print portal for ongoing multi-site orders?

Procurement red flags:

  • No local or sector references available
  • Unwilling to provide physical sample panels before sign-off
  • Vague or unconfirmed lead times at point of quotation
  • No maintenance or repair plan offered post-installation
  • Sustainability claims with no certification or documentation

Project checklist before briefing:

  • Scope: number of signs, panel sizes, quantities, and locations
  • Materials spec: substrate, finish, mounting method, and weather exposure rating
  • Installation: access requirements, fixing type, and groundworks if needed
  • Maintenance plan: inspection schedule and panel replacement process
  • Accessibility checks: contrast ratios, font sizes, alternative formats required
  • Pricing and contingency: agree a cost band and a 10–15% contingency for bespoke items

Request a project portfolio and on-site installation photos. A supplier who has delivered for a heritage site, museum, or outdoor attraction will understand the constraints that a generic commercial printer will not.

Pro Tip: Ask for a pre-production sample trial of any new substrate and finish combination. Install a single prototype panel for a week to test light, reflection, and visitor interaction before committing to a full production run.

What are realistic lead times and costs for attraction print projects?

Lead times vary by complexity, substrate, and installation requirements. The figures below are indicative for UK production in 2026.

Bespoke substrates, complex finishes (foiling, embossing, anti-graffiti), site surveys, and installation scheduling all extend lead times. Plan for the longer end of any range when your project involves outdoor installation or heritage site restrictions.

Ways to reduce lead times and costs:

  • Use standardised templates for recurring collateral (seasonal leaflets, shelf-talkers)
  • Consolidate multi-site orders into a single production run via a web-to-print portal
  • Schedule large-format signage outside peak season to avoid production bottlenecks
  • Agree a framework agreement with your supplier for annual or seasonal reprints

What print projects for attractions actually teach you

The projects that succeed share one thing: a clear brief written before anyone opens a design file. Attractions that arrive with a site map, a visitor flow diagram, and a list of accessibility requirements get better results, faster, and at lower cost. Those that brief on the fly spend the budget on revisions.

Hands assembling modular exhibition stand panels

Two lessons stand out from delivering print for UK attractions. First, early site audits prevent installation delays. Knowing that a particular wall receives direct afternoon glare, or that a mounting point sits within a listed building’s protected zone, changes the substrate and fixing specification entirely. Second, modular systems save money over time. An attraction that invests in a modular exhibition stand or a panel system with interchangeable graphics will spend less on reprints over three years than one that commissions bespoke one-off panels each season.

A web-to-print portal removes the single biggest source of ongoing friction for multi-site attractions: the back-and-forth over artwork approval. When pre-approved templates are available in a portal, your retail team can reorder seasonal merchandise or replace a damaged wayfinding panel without involving the marketing department or a designer. That is not a minor convenience; it is the difference between a panel being replaced in three days and it staying damaged for three weeks.

A3m delivers print solutions built for UK attractions

A3m works with marketing and operations managers who need more than a printer. With in-house large-format manufacturing, A3m handles everything from wayfinding signage and interpretive panels to modular exhibition stands and retail POS displays, all produced and quality-checked under one roof. Sustainable substrates, accessibility-aware design, and managed installation are part of the service, not extras.

A3m

Whether you need a full site signage scheme, a seasonal brochure run, or a web-to-print portal for your gift shops, A3m can scope the project, provide sample panels, and confirm lead times before you commit. Get in touch with the team at A3m to request a sample pack or arrange a site-audit consultation.

Sources

by Chris@a3m.co.uk

Installer fixing restaurant aluminium fascia sign outdoors

Top signage solutions for restaurants & cafés: procurement guide

For most UK restaurants and cafés, the printed signage that delivers the greatest return breaks down into seven core types: external fascia, illuminated fascia or halo letters, window graphics, an outdoor menu board, an A-board, internal menu and upsell boards, and wayfinding or branded wall graphics. Together, these cover visibility from the street, pre-entry browsing, in-venue upselling, and customer flow. To commission them efficiently, prepare your brand guidelines, site photographs, and a high-level budget before approaching a supplier. A3m provides bespoke signage with in-house manufacture, site surveys, and managed multi-site rollouts, so a single brief can take a venue from concept to installed sign.

Table of Contents

What are the top signage solutions for restaurants and cafés?

The right combination of printed signs depends on your trading hours, street position, and menu complexity, but most venues share a common core. Here is the shortlist with purpose and indicative UK budget ranges:

  • Window graphics — promotions, privacy screening, or seasonal campaigns; removable vinyl or frosted film; often costs a few hundred pounds per window.

Venue-type examples. A high-street café typically needs an illuminated fascia, A-board, window graphics, and a printed outdoor menu board. A suburban bistro with daytime-only trading can often rely on a non-illuminated fascia, projecting sign, and internal menu boards. A late-night restaurant benefits most from illuminated halo letters, window graphics, and strong wayfinding inside.

Which materials and finishes should you specify?

Substrate choice determines lifespan, maintenance burden, and finish quality. The table below covers the most common options in hospitality signage.

Substrate Typical lifespan Best for Key advantage Watch out for
Aluminium composite (ACM/Dibond) 10 years External fascias, menu boards Rigid, lightweight, weather-resistant Requires professional fixing
Acrylic 7 years Illuminated faces, internal plaques High-gloss finish, colour-stable Brittle if thin; avoid high-impact areas
Stainless steel 15+ years Premium entrance plaques, wayfinding Extremely durable, premium look Higher cost; heavier fixing requirements
Treated timber 5 years Rustic or heritage venues Warm aesthetic, paintable Requires annual sealing in wet climates
Foamex (PVC foamboard) 3–5 years Internal displays, temporary works Low cost, lightweight Not suitable for outdoor long-term use
Cast or cut vinyl 5–7 years (outdoor) Window graphics, wall branding Versatile, removable grades available UV degradation without laminate

Outdoor sign materials and their lifespans vary considerably by location. Coastal or high-pollution sites shorten the lifespan of most substrates by 20–30%, so specify marine-grade fixings and UV-stable inks as a baseline.

Specialist finishes worth requesting include halo or edge illumination for built-up letters, anti-graffiti coatings for street-level graphics, matt aqueous lamination for printed panels, and metallic foil or textured timber finishes for premium interior branding.

Halo illuminated built-up letters on restaurant wall

Pro Tip: For any sign within 500 metres of the coast or in a heavily trafficked urban area, specify grade-316 stainless fixings and ask your supplier to confirm the ink system is UV-stable to ISO 11798 or equivalent. It adds little to the unit cost and can double the effective outdoor lifespan.

How should you plan maintenance and sign lifecycle?

Sign type Cleaning frequency Service tasks Typical lifespan
External fascia (ACM) Quarterly Check fixings, clean face 10 years
Illuminated fascia Quarterly + annual electrical check Replace failed LEDs, reseal edges 7 years (face); LEDs 50,000+ hours
Window vinyl Monthly wipe-down Replace lifted edges; full refresh every 3–5 years 5–7 years
A-board Weekly wipe Replace printed insert seasonally Frame 5 years; inserts as needed
Internal menu boards Monthly Clean surface; reprint panels on menu change 5 years
Foamex internal displays Monthly Replace if warped or marked 3–5 years
Hoardings As needed Check structural fixings after high winds Temporary; typically 6 months

Maintenance schedule and lifespan comparison for restaurant sign types

Plan replacement rather than repair when you see fading beyond brand-colour tolerance, structural corrosion at fixing points, or LED failure across more than 15% of an illuminated panel. Negotiate warranty terms of at least two years on manufacture and one year on installation workmanship when briefing suppliers.

Pro Tip: Specify anti-graffiti coating on all street-level graphics and ask for sacrificial film on window vinyls in high-footfall locations. Replaceable panel systems for menu boards mean you update messaging without replacing the full frame, which cuts long-term costs considerably.

How do you run a single-site or multi-site signage rollout?

The procurement model you choose shapes both cost and speed. For a single site, a project-based quote covering survey, manufacture, and installation is straightforward. For groups of three or more sites, a framework agreement or managed fulfilment model with a web-to-print portal reduces per-site admin and keeps brand consistency tight across locations.

A typical single-site timeline runs: site survey (week 1), design approval (weeks 1–2), manufacture (weeks 2–4), delivery and installation (week 5). Parallel-tracking design and planning consent applications compresses overall lead time. For multi-site rollouts, staggered installation windows and a central brand asset library managed through a web-to-print portal mean individual site managers order approved artwork without involving the central marketing team each time.

Structure your supplier brief to include: brand guidelines (fonts, colours, logo files), site photographs (frontage, interior, window dimensions), access constraints (restricted hours, scaffolding requirements), preferred installation windows, and a clear sign-type priority list.

What questions should you ask a signage supplier?

A thorough quote protects you from scope creep and installation-day surprises. Request the following before signing off:

  • Site survey report with measurements and photographs
  • Technical drawings showing fixing positions and structural loads
  • Material samples or physical mockups for approval before manufacture
  • Warranty terms covering manufacture and installation workmanship separately
  • Public liability insurance certificate (minimum £5 million)
  • Method statements and risk assessments (RAMS) for installation
  • Electrical installation certificate for any illuminated signs
  • Fixed-price installation quotation with named access method (cherry picker, scaffold, MEWP)
  • Confirmation of who applies for Advertisement Consent and the associated fee

Red flags to watch for: vague lead times with no milestone dates; missing insurance or electrical certification; no sample approval stage; inconsistent material specifications between quote and drawings; open-ended installation charges described as “subject to access.”

Budget for optional extras that are frequently omitted from headline quotes: planning application fees (£462 in England), scaffolding or MEWP hire, electrical supply works, and landlord consent administration.

How does A3m deliver value for restaurants and cafés?

A full-service supplier with in-house manufacture removes the coordination risk that comes from splitting print, fabrication, and installation across separate contractors. A3m handles the complete project flow: site survey, technical drawings, sample sign-off, manufacture, and co-ordinated installation. For multi-site operators, A3m’s web-to-print portal gives site managers access to pre-approved artwork and ordered fulfilment without central-team involvement on every job.

The signage best practices guide A3m publishes for hospitality clients reflects the kind of sector-specific knowledge that translates into fewer installation-day problems and more accurate quotes. Specialist finishes including foiling, halo illumination, and anti-graffiti coatings are produced in-house, which means shorter lead times and tighter quality control than outsourced alternatives.

Key takeaways

Bespoke printed signage for UK restaurants and cafés requires the right substrate, a clear planning checklist, and a supplier who can manage manufacture, installation, and multi-site rollouts under one roof.

Point Details
Prioritise seven core sign types External fascia, illuminated letters, window graphics, menu board, A-board, internal upsell boards, and wayfinding cover most venues.
Specify materials and warranties ACM and acrylic outlast foamex outdoors; always negotiate a two-year manufacture warranty and one-year installation warranty.
Budget for planning consent Advertisement Consent in England costs £462 per site and takes around eight weeks — include both in your project timeline.
Use managed fulfilment for multi-site Web-to-print portals reduce site-level admin and maintain brand consistency across all locations.
A3m as your supplier A3m offers in-house manufacture, site surveys, sample approvals, and managed rollouts for UK hospitality groups.

From the team: what we have learned on UK hospitality projects

The single most common cause of budget overrun on hospitality signage projects is not the sign itself. It is the access. A fascia that looks straightforward from the pavement often sits above a listed shopfront, requires a MEWP on a restricted highway, or needs landlord consent that takes three weeks to arrive. The projects that run smoothly are the ones where the site survey happens before the quote is finalised, not after.

Standardising fixings, panel sizes, and substrate specifications across a multi-site rollout saves more money than negotiating on unit price. When every site uses the same ACM thickness and the same fixing centres, replacement panels can be manufactured in batches and installed by any qualified team on the framework, without a bespoke survey each time.

One practical tip: ask your supplier to photograph every installation on the day and log the fixing specification. That record is worth its weight when a panel needs replacing two years later and the original installer is unavailable.

A3m’s signage services for hospitality groups

A3m works with UK restaurant and café groups to deliver printed signage from brief to installation, with in-house manufacture that keeps quality and lead times under control. The service covers external fascias, illuminated signs, window graphics, POS displays, wayfinding, hoardings, and multi-site managed fulfilment through a web-to-print portal. Sustainability options including PVC-free substrates and low-VOC inks are available on request, with material declarations provided as standard.

A3m

To start, send A3m your brand guidelines, site photographs, and a rough priority list of sign types. The team will book a site survey, prepare sample sign-offs, and return a fixed-price quote with a clear installation timeline. For multi-site operators, ask about framework agreements and web-to-print setup.

Get in touch via the A3m signage page to request a survey or framework quote. We love to chat through the brief before anything is committed to paper.

by Chris@a3m.co.uk

Outdoor school campus signage and wayfinding

Top signage solutions for school campuses: UK guide

For most UK school campuses, the most effective signage mix combines external orientation signs, building identification, internal wayfinding, room and door signs, safety and escape-route signage, temporary or event signs, and a managed digital signage layer for high-traffic zones. Together, these cover navigation, safety, communication, and school identity in one coherent system.

Why this combination works: each type solves a distinct problem. External signs orient visitors before they enter. Wayfinding reduces congestion in corridors. Safety signs are a legal requirement. Digital screens handle time-sensitive communications that static signs cannot. As the NHS wayfinding guidance makes clear, signs alone rarely fix navigation problems — they work best alongside architectural cues, colour-coded zones, and clear site maps.

Your immediate next steps:

  1. Commission a site audit covering all campus zones, including entrances, car parks, corridors, and specialist facilities.
  2. Run an accessibility check against BS 8300 guidance, noting viewing distances, mounting heights, and contrast requirements.
  3. Request a staged quote from a supplier covering: site survey → bespoke design → manufacture → installation → snagging and handover.

  • Involve your safeguarding lead, estates manager, and IT team from the outset.

  • Budget for digital screens separately from static signage, as CMS licences and network requirements add to the total cost.

Table of Contents

What types of signage does every campus zone need?

The top signage solutions for school campuses divide neatly by zone, and getting the placement right matters as much as the sign itself.

  1. External site and entrance signs. These are the first thing visitors and contractors see. Placement at the main road boundary and each pedestrian entrance, with clear school name, logo, and directional arrows, sets the tone for the whole campus. Viewing distance is typically 15–30 metres, so lettering height and contrast must be specified accordingly.
  2. Car park and drop-off waymarkers. Freestanding or post-mounted signs directing parents, deliveries, and blue-badge holders to the correct bays. Often overlooked in briefs, but a common source of congestion complaints.
  3. Building identification signs. Fascia-mounted or freestanding signs naming each block. On multi-building campuses, colour coding by faculty or year group dramatically reduces the time visitors spend lost. The Netley Campus wayfinding project in London used colour-coded motifs per faculty alongside symbol-and-text combinations, which proved particularly effective for ASD units and younger pupils.
  4. Main reception and lobby screens. A digital display at reception handles welcome messages, visitor check-in information, and real-time notices without cluttering the space with printed sheets.
  5. Corridor wayfinding. Overhead hanging signs or wall-mounted directional panels at every junction. The rule of thumb: a person should never need to make more than two decisions before reaching their destination.
  6. Room and door signs. Consistent format across every classroom, office, and specialist room. Include room number, name, and a symbol where appropriate. Acrylic or aluminium face-fixed signs with a matt finish are the standard for internal use.
  7. Toilet and specialist facility signs. Gender-neutral and accessible toilet signage is increasingly expected. Science labs, food tech rooms, and sports halls need hazard-specific signs in addition to identification.
  8. Safety and escape-route signs. These are non-negotiable under UK fire safety legislation. Fire exit, assembly point, and first-aid signs must comply with BS ISO 7010 and be positioned at every decision point on an escape route.
  9. Temporary and event signs. Open days, sports days, and parents’ evenings all need short-term directional and promotional signage. Correx boards, roller banners, and printed hoardings are cost-effective for these occasions. For guidance on event signage production workflows, the principles translate directly to school events.
  10. Hoardings. Construction hoardings around building works protect pupils and communicate progress. Large-format printed panels can carry school branding and project information simultaneously.

Pro Tip: Map every sign location on a campus floor plan before writing your procurement brief. It prevents duplication, reveals gaps, and gives suppliers the information they need to quote accurately.

What should you specify for school digital signage?

The starting point is a CMS with role-based access, emergency-push capability, and multi-screen scheduling. Without those three features, a digital signage system quickly becomes a maintenance burden rather than a communications asset.

Technical checklist:

  • Screen brightness: minimum 400 nits for corridors; 700+ nits for entrance areas with natural light.
  • Panel rating: 24/7-rated commercial displays for reception and main entrance; standard commercial panels for internal corridors.
  • Orientation: landscape for general information and menus; portrait for door and room-adjacent screens.
  • Network resilience: screens should cache content locally so they display correctly during network outages.
  • Touch vs non-touch: touch kiosks suit reception and library areas; non-touch panels are lower maintenance for corridors.

Safeguarding and content governance matter as much as the hardware. Your CMS should provide:

  1. Named user accounts with defined roles (content editor, approver, administrator).
  2. An audit log of all content changes.
  3. A content approval workflow before anything goes live on screens.
  4. Data protection compliance for any pupil-facing content.

Operationally, assign clear ownership: the office manager updates menus and daily notices; the safeguarding lead holds emergency-alert permissions; IT manages network and hardware. A3m’s digital signs and display solutions include managed CMS options that handle multi-screen scheduling and emergency messaging for institutional deployments.

Pro Tip: Never rely on digital screens alone for safety-critical information. Fixed fire exit and assembly-point signs must remain in place regardless of how good your screen network is.

A guide to digital signage for UK schools identifies six key campus zones where screens deliver the most value: reception, canteen, corridors, sports hall, library, and staff areas.

How do you choose the right signage supplier?

Prioritise suppliers who offer site surveys, bespoke design, in-house manufacture, and written SLAs. Those three capabilities together mean fewer handoffs, faster problem resolution, and clearer accountability.

Supplier checklist:

  • Demonstrable experience in education or public-sector projects (ask for a portfolio or case studies).
  • Written warranty terms covering materials, fixings, and printed graphics.
  • Public liability and employer’s liability insurance certificates.
  • CDM (Construction Design and Management) compliance for any installation work.
  • Material specification sheets and lifecycle estimates provided at quote stage.
  • References from comparable school or campus projects.

Red flags to watch for:

  • Vague lead times with no committed manufacture window.
  • No site survey offered before quoting.
  • Warranties described verbally rather than in writing.
  • No named contact for post-installation support.
  • Missing health and safety documentation for installation teams.

Questions worth asking in a site meeting:

  1. Who manufactures your signs, and is it done in-house?
  2. What is your process if a sign arrives damaged or incorrect?
  3. How do you handle accessibility compliance checks during design?
  4. What maintenance or SLA options do you offer after installation?
  5. Can you provide a phased installation schedule to minimise disruption to the school day?

Pro Tip: Ask for physical material swatches before approving a specification. Colours and finishes look different on screen than they do on a sign fixed to a wall in a corridor under fluorescent light.

A3m’s signage services cover the full process from site survey through to installation, with in-house production giving direct control over quality and lead times.

How A3m approaches a campus signage project

A typical A3m campus project begins with a site survey, where we walk the campus with the facilities manager, photograph every sign location, note viewing distances, and flag accessibility gaps. That survey informs a bespoke design proposal, with material specifications, colour-matched to the school’s brand identity, and layout mock-ups for approval before anything goes to manufacture.

A3m’s in-house large-format print capability means we control quality at every stage, from the substrate and ink specification through to the finished panel. For campus projects, that matters: a sign that arrives with the wrong finish or an off-brand colour cannot simply be swapped out on installation day.

A3m services relevant to campus projects:

  1. Large-format print and custom signage for external, wayfinding, and room signs.
  2. Digital signs and managed CMS for reception, canteen, and corridor screens.
  3. Printed hoardings for construction zones and campus development projects.
  4. Web-to-print portals for multi-academy trusts rolling out consistent signage across several sites.
  5. Temporary and event signage for open days, sports days, and careers fairs.

Post-installation, A3m provides written warranty documentation and can arrange maintenance agreements covering inspection, cleaning, and replacement of damaged panels.

Next steps: from audit to rollout

  1. Run an accessibility audit — Check current signage against BS 8300 and the gov.scot sensory-inclusive guidance. Note gaps for your brief.

Internal stakeholders to involve at each stage: governors (budget approval), safeguarding lead (digital content governance), estates (installation logistics), and IT (network and CMS requirements). For multi-academy trusts, a retail rollout signage checklist approach adapts well to consistent cross-site deployment.

Key takeaways

The most effective educational campus signage combines static wayfinding and identification signs with a managed digital layer, built on inclusive design principles from the outset.

Point Details
Recommended signage mix Combine external orientation, building ID, wayfinding, room signs, safety signs, event signs, and digital screens.
Inclusive design is the baseline Specify contrast ratios, tactile features, Makaton space, and consistent positioning in every supplier brief.
Site survey before quoting A site survey prevents specification errors and produces accurate, comparable quotes from suppliers.
Budget for digital separately Commercial screens start from around £399–£499 each; CMS licences add from approximately £120–£150 per year.
A3m for campus projects A3m offers site survey, bespoke design, in-house manufacture, digital signage, and post-installation support across the UK.

What most schools get wrong about signage

The most common mistake is treating signage as a one-off purchase rather than a managed asset. Schools commission a full sign suite, install it, and then do nothing for a decade. By year five, temporary notices have been blu-tacked over wayfinding panels, fire exit signs have faded, and the digital screens are running content nobody has updated since the previous head teacher’s tenure.

The second mistake is specifying signage in isolation from the campus environment. New signs on a poorly laid-out site will not fix navigation. The NHS wayfinding guidance makes this point clearly: effective wayfinding pairs signs with architectural landmarks, colour-coded zones, and clear sightlines. If your corridors are confusing, start with the layout before you spend on signs.

What actually works is a brief that specifies materials, maintenance, accessibility, and a review cadence alongside the sign types and quantities. Suppliers who push back on that level of detail, or who cannot provide lifecycle estimates, are telling you something important about how they will behave after installation.

One more thing: post-installation support is where the real value of a good supplier shows. Written warranties, a named account contact, and a clear process for damaged or incorrect signs are worth more than a marginally lower unit price.

What most schools get wrong about signage — overview diagram

A3m can help you plan and deliver your campus signage

Schools and multi-academy trusts that want a single supplier for the full process, from site survey to installed and warranted signs, will find A3m a practical choice. We handle bespoke signage for external and internal applications, digital signs and CMS management, printed hoardings, and web-to-print portals for trusts managing consistent branding across multiple sites. Our in-house manufacturing means we control quality, lead times, and material specifications directly, without subcontracting the work that matters most.

A3m

The clearest next step is a site survey. It costs nothing to arrange, gives you an accurate specification, and means any quote we provide reflects your campus rather than a generic template. Get in touch with the A3m team to book yours, or visit our large-format print manufacturing page to understand the production advantages we bring to every campus project.

Useful sources and UK standards

Standards and statutory guidance:

Digital signage and procurement resources:

Specialist advice:

by Chris@a3m.co.uk

Event organizer reviewing sustainable print materials

Sustainable print options for event organisers

The most effective sustainable print options for event organisers combine modular reusable hardware, FSC or PEFC-certified recycled substrates, digital short-run printing, low-VOC vegetable or water-based inks, and local sourcing. Together, these choices can dramatically cut the waste that the UK events industry generates, with isla’s research citing an Ecobooth study finding a substantial amount of event waste burnt or sent to landfill in a single year.

TL;DR for procurement leads: Treat sustainable print as a buying process, not a material swap. Commission modular, reusable assets from the outset, specify certifications in your brief, and measure what you divert from landfill.

Immediate actions:

  • Specify FSC or PEFC-certified, recycled-content substrates in every print brief
  • Require vegetable or water-based inks and ban solvent-based finishes for indoor use
  • Commission modular, flat-pack display hardware designed for reuse across multiple events
  • Choose digital printing for short runs and variable content to avoid overordering
  • Source from UK-based suppliers to reduce transport emissions
  • Design for mono-material construction and tool-free disassembly
  • Measure waste diverted from landfill and recycled content percentage post-event

Table of Contents

What should your sustainable print procurement checklist include?

A checklist you can hand to a supplier or paste into a purchase order saves time and removes ambiguity. Group requirements by stage.

Scoping

  1. Define total print volume needed; challenge every item against a digital alternative (QR codes, event apps, screens)
  2. Confirm whether assets will be reused across future events before specifying quantities
  3. Check venue requirements: local authorities and major UK venues increasingly require evidence of sustainability standards as part of site permissions

Materials

  1. Specify FSC or PEFC-certified substrate with minimum recycled content percentage stated
  2. Require PVC-free construction throughout; no mixed-material laminates
  3. Request vegetable or water-based inks only; no solvent-based inks for indoor graphics

Production

  1. Ask for ISO 14001 certification or equivalent environmental management evidence
  2. Request waste transfer notes covering production offcuts and proofing waste
  3. Confirm digital printing for runs under 500 units; offset only for large stable runs

Delivery and on-site use

  1. Require local or regional manufacture where possible to reduce transport kilometres
  2. Specify flat-pack or roll-up delivery to minimise packaging

End-of-life

  1. Agree a collection or take-back plan for reusable hardware before the event
  2. Confirm materials are sorted and recyclable at standard UK facilities

Sample spec snippets to paste into a brief or PO:

  • “All substrates must be FSC-certified or PEFC-certified with a minimum of 30% post-consumer recycled content. PVC coatings and mixed-material laminates are not acceptable.”
  • “Inks must be vegetable-based or water-based. Solvent-based inks are excluded from this contract.”
  • “Supplier must provide ISO 14001 certification or a documented environmental management policy, plus waste transfer notes for all production waste within 14 days of delivery.”

Quick bid-scoring guide:

Criterion Green (2 pts) Amber (1 pt) Red
Substrate certification FSC/PEFC confirmed Partial or pending None stated
Ink type Vegetable/water-based UV-curable only Solvent-based
Environmental management ISO 14001 certified Policy documented No evidence
End-of-life plan Take-back confirmed Recycling guidance No plan

Which substrates and finishes actually reduce environmental impact?

Infographic comparing eco-friendly and less sustainable print substrates

Material choice is where most organisers make the biggest gains, or the biggest mistakes.

Recycled paper and cardboard are the safest indoor choices: widely recyclable at standard UK facilities, lightweight, and available with FSC or PEFC chain-of-custody. Corrugated cardboard works well for temporary display structures and point-of-sale units. For roller banners used indoors, cardboard cassette roller banners are a practical, recyclable alternative to standard plastic cassettes.

Hands assembling recycled cardboard banner stand

Aluminium composite panels are durable and reusable across many events, but they require specialist recycling. Mono-material polypropylene boards are preferable to aluminium composite when a lighter, single-material option suffices for a short-term installation.

Finishes and coatings to avoid:

  • PVC laminates on board or paper: mixed materials contaminate recycling streams and render items unprocessable at most UK facilities
  • Permanent solvent-based adhesives: prevent disassembly and contaminate substrates
  • Metallic foil laminates bonded to paper: not recyclable in standard paper streams
Substrate Recyclable? Best use Lifecycle note
FSC recycled board Yes Indoor signage, posters Widely accepted at UK facilities
Corrugated cardboard Yes Display structures, POS Avoid wax coatings
Mono-material PP board Yes (specialist) Outdoor short-term Check local facility acceptance
Aluminium composite Yes (specialist) Long-life reusable panels Requires dedicated recycling route
PVC banner No Avoid where possible Contaminates recycling; landfill risk

Pro Tip: When briefing a supplier, write “mono-material construction required; no PVC coatings or mixed-material laminates” as a standalone line in your specification. Suppliers who cannot meet it should be scored red on your evaluation.

Which printing process cuts the most waste?

Digital printing is the right choice for short runs and variable content: it eliminates plate-making waste, allows exact quantities, and makes last-minute copy changes practical. For event materials where quantities are typically under 500 units and content changes between events, digital is almost always the lower-waste option.

Offset printing remains cost-effective for large, stable runs where content is fixed and quantities exceed several thousand. The trade-off is upfront plate waste and the risk of overordering. If you do use offset, specify vegetable-based inks and waterless offset where available.

Ink choices matter for indoor air quality and recyclability:

  • Vegetable or water-based inks: preferred for indoor event graphics because they avoid volatile organic compounds linked to solvent inks
  • UV-curable inks: lower VOC emissions than solvent inks and cure instantly, though they require specialist recycling of cured print
  • Latex inks: water-based carrier, suitable for wide-format graphics, good recyclability profile
  • Solvent-based inks: avoid for indoor events; higher VOC emissions and harder to recycle

Technical callouts to include in your print spec:

  • Ink type: vegetable-based, water-based, or latex only
  • VOC limit: request supplier’s VOC data sheet
  • Finishing: cold laminate or paper-based cassette preferred; no permanent solvent laminates
  • Proofing: digital proofs only to eliminate physical proof waste

How do you design printed assets for reuse and recycling?

The Waste Hierarchy is the correct decision framework: prevent first, reuse second, recycle third. Applied to event print, this means designing assets that never need to be produced again, before worrying about what happens to them at the end.

Core design rules:

  • Use mono-materials throughout: one substrate, one ink type, no mixed coatings
  • Specify removable fixings: hook-and-loop, magnetic mounts, or removable adhesive rather than permanent bonding
  • Design flat-pack geometry: panels that stack, roll, or fold for compact storage and transport
  • Label materials: print the substrate type on the reverse so recyclers can sort correctly
  • Avoid mixed adhesives: double-sided tape that cannot be removed cleanly contaminates the substrate

Building a reusable modular kit:

  1. Identify which elements change between events (dates, speaker names, sponsors) and which stay constant (brand panels, wayfinding, structural frames)
  2. Design constant elements as durable, reusable hardware; print variable elements on interchangeable inserts
  3. Standardise frame sizes across your event portfolio so inserts are interchangeable
  4. Create a storage and transport inventory so nothing is lost between events
  5. Brief your supplier on the full reuse plan before production begins; early supplier engagement reduces friction and improves outcomes

What exact wording should you use in a sustainable print brief?

Precise language in a brief or purchase order is what separates a genuine sustainability requirement from a preference a supplier can ignore.

Sample brief paragraphs:

Materials clause: “All print substrates must carry FSC or PEFC chain-of-custody certification. Recycled content must be stated as a percentage on the delivery note. PVC-based materials and mixed-material laminates are excluded.”

Production clause: “The supplier must hold ISO 14001 certification or provide a documented environmental management policy. Waste transfer notes covering all production waste must be submitted within 14 days of delivery.”

End-of-life clause: “Reusable hardware must be returned to [organiser address] within five working days of the event. Disposable print items must be sorted by material type and collected for recycling; a waste transfer note is required as evidence.”

The Green Events Code of Practice recommends integrating sustainability into purchasing decisions and measuring impacts annually, so these clauses also support your compliance posture.

Minimum acceptable certifications:

  • FSC or PEFC chain-of-custody for all paper and board substrates
  • ISO 14001 or documented environmental management system for the supplier
  • Waste transfer notes for production and post-event waste
Criterion Minimum standard Evidence required
Substrate certification FSC or PEFC Certificate number on delivery note
Recycled content Stated % on delivery note Supplier declaration
Environmental management ISO 14001 or equivalent Certificate or policy document
Waste handling Waste transfer note Copy submitted post-event

How do sustainable choices affect your budget and lead times?

Digital short runs cost more per unit than offset but eliminate overordering, which is where most print budgets quietly leak. A run of 200 programmes printed digitally at a higher unit cost will almost always be cheaper in total than 1,000 offset copies of which 600 go to landfill.

Reusable modular hardware requires a higher upfront investment. Amortised across three or four events, the cost per use typically falls well below single-use alternatives, and you avoid the repeat production cost entirely.

Two indicative scenarios:

Small indoor conference (200 delegates): Digital printing for all collateral, cardboard roller banner cassettes, one modular pull-up stand. Higher per-unit print cost, but zero overstock waste and the stand reused at the next event.

Multi-stop trade show tour (five venues): Modular exhibition stand with interchangeable graphic inserts. Structural frame produced once; inserts reprinted digitally per venue. Significant saving versus full stand rebuild at each stop.

Practical cost-reduction tips:

  • Consolidate assets: one modular kit serves multiple events rather than bespoke production each time
  • Standardise sizes: A-series paper and standard banner widths reduce waste and supplier setup costs
  • Source locally: UK-based suppliers reduce transport costs and emissions, and advance planning gives you access to better pricing
  • Replace printed handouts with QR codes linking to digital content where appropriate
  • Produce variable content (schedules, speaker bios) as digital inserts rather than full reprints

Pro Tip: Rent display hardware when you run fewer than three events per year or lack storage. Buy when you run four or more events annually and can store assets between uses. The break-even point shifts quickly once storage and logistics costs are factored in.

How do you measure and report print sustainability for events?

Measurement turns good intentions into evidence. The Green Events Code of Practice recommends annual impact measurement and supplier collaboration, and The Royal Parks sustainability checklist requires pre-event and during-event audits for events on its sites.

Priority KPIs:

  • Material reused (kg): weight of hardware and substrates carried forward to the next event
  • Recycled content (%): stated on supplier delivery notes
  • Waste diverted from landfill (%): based on waste transfer notes
  • Number of reusable assets in your kit
  • Transport kilometres: distance from supplier to venue; prefer under 100 miles for UK events
  • Estimated CO2e: request from your supplier or use a print carbon calculator

Simple post-event reporting fields:

Field Data source
Total print weight produced (kg) Supplier delivery note
Recycled content (%) Supplier declaration
Reusable assets returned (number) Post-event inventory check
Waste to landfill (kg) Waste transfer note
Waste to recycling (kg) Waste transfer note
Supplier location (km from venue) Supplier address

Verify supplier claims with waste transfer notes, FSC chain-of-custody certificates, and ISO 14001 documentation. Keep copies for your Safety Advisory Group submission and any Green Events Code alignment report.

How A3m delivers sustainable print for UK events

A3m’s approach to sustainable event print is built around the same principles this guide recommends: modular hardware designed for reuse, recycled and FSC-certified substrates, in-house UK manufacture, and full transparency on materials and processes.

A recent project for a multi-venue UK exhibition tour used A3m’s bespoke modular exhibition stands with interchangeable graphic inserts printed on FSC-certified recycled board. The structural frames were reused across all five venues; only the variable inserts were reprinted between stops, cutting total print volume by more than half compared with a conventional full-rebuild approach. All substrates were mono-material and sorted for recycling at each venue.

Trust signals organisers can rely on:

  • In-house manufacturing in the UK, reducing transport emissions and giving full control over material specifications
  • Published sustainable print procurement guidance and documented environmental practices
  • Ability to supply waste transfer notes, recycled content declarations, and FSC chain-of-custody certificates as standard

If you want A3m to review your current print brief or quote for a sustainable event print kit, get in touch with the team directly.

Key takeaways

Sustainable event print delivers the greatest impact when reuse and modularity are built into the brief from day one, not added as an afterthought.

Point Details
Design for reuse first Commission modular hardware with interchangeable inserts to cut repeat production costs and waste.
Specify certifications clearly Require FSC or PEFC substrates, water-based inks, and ISO 14001 from every supplier in writing.
Digital for short runs Choose digital printing for runs under 500 units to eliminate overstock and reduce waste.
Measure and report Capture recycled content %, waste diverted from landfill, and reusable assets returned after every event.
A3m as delivery partner A3m offers modular exhibition stands, FSC-certified large-format print, and in-house UK manufacture aligned with these principles.

Why changing how you buy matters more than what you buy

Most sustainability conversations in event print focus on materials: swap PVC for paper, choose recycled board, use water-based inks. These are worthwhile changes. But isla’s guidance makes a more important point: the biggest gains come from changing the buying process itself, not the product list.

When an organiser scopes a project for modularity and reuse from the outset, the volume of print produced drops, the number of reprints drops, and the end-of-life problem shrinks. A supplier who is briefed to design for disassembly will make different decisions than one handed a standard spec sheet. The Green Events Code of Practice frames sustainability as both a compliance and a reputation issue, which means procurement teams now carry real accountability for these decisions.

The practical consequence is that sustainability must enter the brief before a single material is chosen. Involve your print supplier at scoping stage, not at artwork approval. Make reuse rate and waste diversion measurable criteria in your evaluation, not aspirational footnotes. That shift, from product-swapping to procurement practice, is what separates credible sustainability from greenwashing.

A3m’s sustainable event print services

A3m gives event organisers a direct route from this guide’s recommendations to production. Where many agencies treat sustainability as an add-on, A3m builds it into the brief from the start: modular exhibition stands designed for multi-event reuse, large-format event signage on FSC-certified recycled substrates, and in-house UK manufacture that keeps transport emissions low and gives you full material traceability.

A3m

You get waste transfer notes, recycled content declarations, and FSC chain-of-custody certificates as standard, so your post-event sustainability report is straightforward to compile. Whether you need a reusable modular kit for a trade show tour or a single-event sustainable print package, we love to chat through what works best for your brief and budget. Contact A3m to request a sustainable print audit or quote.

Useful sources for UK event organisers

  • Green Events Code of Practice (September 2025): the primary UK framework for sustainable event management; use it for procurement language, annual measurement targets, and supplier collaboration guidance.
  • Vision for Sustainable Events: Green Events Code: explains venue and local authority expectations for sustainability evidence; essential reading before submitting a site licence application.
  • isla: Better buying for print — an event planner’s guide: the most practical procurement-focused guide available; covers materials, processes, design for end-of-life, and the case for changing the buying process.
  • WTTB: How to make event signage more sustainable: practical substrate and design guidance, including cardboard cassette roller banners and the Waste Hierarchy applied to signage.
  • The Royal Parks sustainability checklist: venue-specific requirements for reducing paper and giveaways; useful as a benchmark for any high-profile UK outdoor event.
  • A3m sustainable print procurement guide: A3m’s own guidance covering certifications, material specifications, and the modular approach to event print.

by Chris@a3m.co.uk

Professional reviewing UK signmaking guidelines

Signage meaning: a clear UK guide

Signage is the collective system of signs and graphics used to communicate information, provide directions, or promote a brand. Where a single sign is one physical artefact, signage refers to the coordinated programme of visual communication that ties multiple signs together into a coherent whole. The Cambridge Dictionary defines it as “all the signs that advertise a product, etc., or signs that tell people what something is or where to go.” The Oxford Advanced Learner’s Dictionary reinforces this, listing it as an uncountable noun meaning signs that give instructions or directions to the public.

A practical example makes the distinction clear:

  • A single illuminated panel above a shop door is a sign.
  • The complete set of window graphics, entrance panel, directional floor stickers, and promotional posters inside that same shop is signage.

The British Sign and Graphics Association (BSGA), the UK’s principal trade body for the sector, frames modern signmaking as a broader visual communications service that now includes large-format print, interior branding, and window graphics alongside traditional fabricated signs. A3m, a UK-based creative print production agency, works across all of these disciplines, from bespoke wayfinding schemes to exhibition graphics and branded environments.

Table of Contents

What types of signage will you commonly encounter?

Signage divides naturally into two broad environments, indoor and outdoor, and then further by function. Understanding the categories helps you match a need to the right format before you brief a supplier.

Designers reviewing indoor and outdoor signage samples

Type Environment Typical example Key production consideration
Wayfinding Indoor / outdoor Hospital corridor arrows, car park level markers Legibility at distance; durable substrates
Promotional Indoor / outdoor Retail window graphics, event banners Short lifespan acceptable; vibrant colour print
Safety & statutory Indoor Fire exit signs, hazard warnings Prescribed geometry and pictogram proportions
Identification Indoor / outdoor Entrance fascias, reception nameplates Brand-accurate colour matching; longevity
Digital display Indoor / outdoor Retail screens, transport information boards Power supply, content management, weatherproofing
Exhibition & events Indoor Exhibition stands, pop-up displays, pull-up banners Portability, reusability, quick assembly
Hoardings Outdoor Construction site boards, development hoardings Large-scale print; planning permission often required
Interpretive Indoor / outdoor Museum panels, heritage trail markers High-resolution imagery; UV-stable inks

Outdoor signage generally demands greater durability: UV-stable inks, weatherproof substrates, and sometimes structural engineering sign-off. Indoor signage can prioritise aesthetics and detail over raw resilience. Outdoor architectural signage sits at the premium end of this spectrum, where materials, planning, and installation all require specialist input.

Infographic comparing indoor vs outdoor signage types

Digital signage is the fastest-growing category. Screens allow content to be updated remotely, making them particularly useful in retail, hospitality, and transport settings where messaging changes frequently. The trade-off is higher upfront cost and ongoing maintenance compared with printed alternatives.

What do organisations actually use signage for?

Signage does several distinct jobs simultaneously, and the most effective programmes plan for all of them from the outset rather than adding functions as an afterthought.

Direction and wayfinding is the most fundamental purpose. Airports, hospitals, shopping centres, and university campuses all rely on coordinated wayfinding to move people efficiently and reduce staff time spent giving directions.

Identification and entrance signals who occupies a space. A hotel fascia, a corporate reception wall, or a retail shopfront all tell visitors they have arrived at the right place and set the first impression of the brand.

Technician installing corporate entrance sign outdoors

Safety and regulatory signage is a legal obligation in most commercial and public spaces. Fire exit signs, assembly point markers, and hazard warnings must meet specific standards and cannot be treated as optional.

Promotional and marketing signage drives commercial behaviour. Well-placed point-of-sale displays, window graphics, and seasonal campaign panels influence customer decisions and dwell time in ways that digital advertising cannot replicate at the physical point of purchase.

Informational and interpretive signage educates. Think of the panels in a museum, the menu boards in a restaurant, or the product information displays in a showroom.

Common sector applications:

  • Retail: window graphics, POS displays, seasonal campaign banners, till-point signage
  • Hospitality: entrance fascias, room identification, menu boards, wayfinding for large venues
  • Transport: platform information, car park guidance, accessibility signage
  • Healthcare: departmental wayfinding, patient information, safety notices
  • Events and exhibitions: stand graphics, directional floor vinyls, sponsor panels, pull-up banners

The role of signage in the customer journey extends well beyond simple direction. Cohesive visual communication across a space builds brand confidence and keeps customers engaged longer.

What is the difference between a sign and signage?

The distinction matters when you are briefing a supplier or writing a procurement specification, because the two terms imply very different scopes of work.

A sign is a single, self-contained physical object: one A-board outside a café, one fire exit panel above a door, one fascia above a shopfront. It has a defined size, a single message, and a fixed location.

Signage is the programme. It is the coordinated set of signs and graphics that together create a consistent visual environment. A university campus wayfinding scheme, for instance, might include dozens of external directional posts, internal floor-level arrows, building identification panels, and digital information screens, all designed to a single visual language.

The practical implications for procurement are significant:

  • Ordering a single sign requires a brief, a proof, and a delivery date.
  • Specifying a signage programme requires a site survey, a design system, phased approvals, installation planning, and often planning permission for external elements.
  • Maintenance is also different: a programme needs a schedule that covers cleaning, bulb replacement, vinyl refresh, and periodic brand updates across multiple locations.

If you ask a supplier to quote for “signage” when you mean one replacement panel, you will receive a very different proposal than you intended. Using the terms precisely saves time and avoids misaligned expectations on both sides.

What materials and formats are used to produce signage?

The substrate and production method you choose affect durability, cost, and visual quality in equal measure. Here is a practical overview of the most common options.

Common materials:

  • Acrylic: clean, premium finish; popular for reception lettering, internal wayfinding, and illuminated signs
  • Aluminium composite (Dibond): rigid, lightweight, weather-resistant; widely used for external fascias and hoardings
  • Foamex / PVC foam board: lightweight and cost-effective; suited to short-term indoor displays and exhibition graphics
  • Vinyl: versatile self-adhesive film applied to windows, walls, floors, and vehicles; removable grades available
  • Timber: warm, tactile finish for premium retail, hospitality, and heritage settings
  • Fabric: lightweight and portable; used for exhibition backdrops, tension displays, and event banners
  • Correx (corrugated plastic): inexpensive and lightweight; common for temporary outdoor signage and construction hoardings

Print and production methods:

Large-format print using UV, solvent, or latex inks is the backbone of most signage production. UV inks cure instantly and bond to rigid substrates; latex inks are water-based and better suited to flexible media. CNC routing cuts precise shapes from rigid boards. LED modules provide illumination for lightboxes and built-up lettering. Specialist finishes such as foiling, embossing, and anti-graffiti laminates add durability or premium appeal. Large-format print manufacturing brings these capabilities together under one roof, which reduces lead times and quality-control risk.

Pro Tip: When comparing substrate options, weigh the total cost of ownership rather than the unit price. A cheaper foamex panel replaced every 18 months often costs more over five years than a Dibond equivalent installed once.

What affects signage cost and how long does a project take?

Budget and timeline are the two questions every client asks first. Both vary considerably depending on the scope of the project.

Cost drivers:

  • Size and quantity: larger panels and higher volumes increase material and print costs, though unit costs typically fall with scale
  • Material choice: acrylic and illuminated signs cost more than foamex or vinyl; architectural metalwork sits at the premium end
  • Illumination: LED lightboxes and halo-lit lettering add both manufacturing and electrical installation costs
  • Design complexity: bespoke typefaces, custom shapes, and multi-layer builds require more design and fabrication time
  • Installation: access equipment (cherry pickers, scaffolding), structural fixings, and electrical connections all add to project cost
  • Planning and consents: applications for planning permission add professional fees and can extend timelines significantly

Typical timeline stages:

  1. Brief and site survey
  2. Concept design and client approval
  3. Technical drawings and planning application (where required)
  4. Manufacture (large-format print, fabrication, or both)
  5. Installation and handover

Project timelines range from a few days for a straightforward single sign replacement to 6–12 weeks or more for complex or consented schemes. Multi-site rollouts add coordination time on top of that. Conservation area applications or listed building consents can extend a project by several months, so identifying these constraints at the brief stage is worth doing early.

UK compliance and accessibility: what do you need to check?

Before any external sign goes up, and before internal statutory signage is specified, there are several UK-specific checks that can save significant cost and delay.

Planning permission:

Most external signs fall under the Town and Country Planning (Control of Advertisements) (England) Regulations 2007, or equivalent devolved legislation in Scotland, Wales, and Northern Ireland. Many signs benefit from “deemed consent” and do not require a formal application, but this depends on size, illumination, and location. Buildings in conservation areas or on the statutory listed buildings register almost always require express consent from the local planning authority. As BSGA guidance notes, experienced signmakers can often manage planning applications on a client’s behalf, reducing the administrative burden considerably.

Safety and statutory signage:

Fire exit signs, emergency lighting markers, and hazard warnings must comply with the Health and Safety (Safety Signs and Signals) Regulations 1996 and relevant British Standards. Pictogram proportions are prescribed: the width of a pictogram should be 80% of the height of the area in which it is printed, ensuring legibility and consistent recognition in safety-critical settings.

Accessibility:

The Equality Act 2010 requires that signage does not create barriers for people with disabilities. Practical requirements include sufficient colour contrast between text and background, minimum font sizes for wayfinding text, tactile elements (such as Braille or raised lettering) in certain settings, and placement at heights accessible to wheelchair users.

Pre-installation checklist:

  • Confirm whether the building is listed or in a conservation area
  • Check local authority advertisement consent requirements
  • Verify that statutory safety signs meet current British Standards
  • Confirm font size, contrast ratios, and placement meet accessibility guidance
  • Obtain structural sign-off for large external installations
  • Consult the BSGA’s sign-buying guide for sector-specific technical standards

How do you choose the right signage or signmaker?

Knowing what signage means is one thing; choosing the right type and the right supplier to deliver it is where the real decisions happen.

Evaluation criteria for a signmaker:

  • In-house manufacturing capability (reduces lead times and quality risk)
  • Experience in your specific sector (retail, hospitality, healthcare, events)
  • Planning and consent support
  • Installation capability, including access equipment and structural fixings
  • Warranty terms and aftercare arrangements
  • Fire and weather ratings for the materials proposed
  • Sustainability credentials (recycled substrates, water-based inks, responsible disposal)

Questions to ask before you commit:

  1. Do you carry out site surveys before quoting?
  2. Can you manage planning applications on our behalf?
  3. What substrates do you recommend for our specific environment, and why?
  4. What is your typical lead time from approved artwork to installation?
  5. Do you provide a maintenance schedule or refresh service?
  6. Can you show examples of similar projects in our sector?

When to specify a full signage programme rather than individual signs:

  • You are opening or refurbishing a site and need a consistent visual identity throughout
  • You operate multiple locations and need brand consistency across all of them
  • Your space requires wayfinding that guides visitors through a complex environment
  • You are planning an exhibition or event where multiple graphic elements must work together

BSGA guidance recommends planning internal and external signage together at the outset, because retrofitting interior graphics to an existing fit-out almost always costs more and delivers a less cohesive result. The same principle applies to corporate event signage, where a joined-up approach across all touchpoints consistently outperforms a piecemeal one.

How A3m approaches signage in practice

A useful way to see these principles in action is to look at how a full signage brief unfolds with a specialist supplier.

A hospitality client briefed A3m to create a complete branded environment for a new hotel opening. The brief covered external fascia signage, internal wayfinding for three floors, restaurant menu boards, and a series of large-format decorative wall graphics for public areas.

A3m’s approach followed a clear sequence:

  • Site survey first: before any design work began, the team visited the site to assess fixing points, ceiling heights, lighting conditions, and any planning constraints on the external signage
  • Unified design system: all elements were developed within a single visual language, so the entrance fascia, corridor arrows, and decorative panels felt like one coherent programme rather than a collection of separate orders
  • Material selection by environment: external panels used Dibond with UV-stable inks; internal wayfinding used acrylic with cut vinyl lettering; decorative wall graphics used fabric tension systems for easy future updates
  • In-house manufacture: producing everything under one roof meant the client had a single point of contact and a consistent quality standard across all elements
  • Phased installation: external signage was installed before opening; interior graphics were completed during the final fit-out phase to avoid damage from other trades

The practical takeaways for any similar brief:

  • Map all stakeholders (marketing, facilities, operations) before the design stage begins
  • Commission a site survey before finalising the specification
  • Integrate interior and exterior signage into a single programme from the start

Pro Tip: Brief your signage supplier at the same time as your architect or interior designer, not after. Integrating signage into the build programme from the outset avoids expensive retrofitting and produces a far more cohesive result.

Key takeaways

Signage is a coordinated system of signs and graphics, not a single object, and understanding that distinction shapes every decision from brief to installation.

Point Details
Signage vs a single sign Signage is a coordinated programme; a sign is one physical artefact within it.
Types and functions Categories include wayfinding, promotional, safety, digital, exhibition, and hoardings, each with distinct material and compliance needs.
UK compliance Check planning consent, British Standards for safety signs, and Equality Act accessibility requirements before installation.
Cost and timeline Simple replacements take days; complex or consented schemes typically run 6–12 weeks or more.
A3m A3m delivers bespoke signage programmes with in-house manufacturing, site surveys, and installation across the UK.

Why planning signage early is the single most underrated decision

Most clients come to us after the fit-out has started. The shopfitter has already fixed the ceiling grid, the electrician has chased the conduit, and now someone is asking where the wayfinding panels go. At that point, the options narrow fast.

The conventional wisdom treats signage as a finishing touch, something you order once the “real” work is done. That framing costs money and produces mediocre results. Signage is not decoration applied at the end; it is a functional layer of the built environment that needs to be planned alongside the architecture, the lighting, and the circulation strategy.

The clients who get the best outcomes are the ones who include their signmaker in the project team from the concept stage. Not because signage is complicated, but because the decisions made early, where a fixing point goes, what height a panel sits at, whether a wall can take a backlit box, determine what is possible later. Retrofitting is always more expensive and always looks like an afterthought, because it is.

There is also a compliance dimension that catches people out. A building in a conservation area, or a listed structure, can require months of planning authority engagement before a single external sign goes up. Discovering this after the opening date is set is a genuinely painful situation. A quick planning search at the brief stage costs nothing and can save a great deal.

The BSGA’s guidance on this is clear, and it aligns with what we see in practice: plan internal and external signage together, involve your supplier early, and treat the programme as an integrated part of the project rather than a line item to be resolved at the end.

A3m can help you get your signage right from the start

A3m is a UK-based creative print production agency with in-house manufacturing, which means you get a single point of contact from brief to installation rather than coordinating between a designer, a printer, and a separate installer. For clients specifying a full signage programme, that matters: it keeps quality consistent, timelines tighter, and communication straightforward.

A3m

Services cover the full range: bespoke wayfinding schemes, external fascia and hoarding signage, exhibition and event graphics, digital display solutions, window and wall graphics, and web-to-print portals for multi-site businesses managing brand consistency across many locations. Whether you need a single replacement panel or a complete branded environment, A3m’s team will carry out a site survey, advise on materials and compliance, and manage the project through to handover.

To see what A3m’s large-format print manufacturing capability can deliver for your signage project, or to request a quote, get in touch with the team at a3m.co.uk/signage.

Useful sources for further reading

A short list of authoritative references for definitions, planning guidance, and technical standards:

  • Cambridge Dictionary: signage — the clearest dictionary definition; use this when you need a concise, citable explanation of what the word means
  • Oxford Advanced Learner’s Dictionary: signage — reinforces the uncountable noun usage and public-facing definition
  • Wikipedia: Signage — a useful general overview of signage history, types, and technical standards including pictogram proportions
  • BSGA / UKSigns: A guide to sign buying — the UK trade body’s practical guide covering sign types, materials, planning, and how to brief a signmaker; the most useful single resource for procurement teams
  • GOV.UK: Advertisement consent — the primary government source for planning permission rules covering external signs in England; equivalent guidance exists on the Scottish Government, Welsh Government, and NI Direct websites for devolved jurisdictions

This article provides general information about signage and UK planning and compliance considerations. It is not legal or regulatory advice. Always verify current requirements with your local planning authority, a qualified professional, or the relevant primary source before proceeding with an installation.

by Chris@a3m.co.uk

email

Privacy Preference Center

Privacy Preferences

This website collects cookies to deliver a better user experience.

tracking

Required
We use tracking to provide services on the website.
